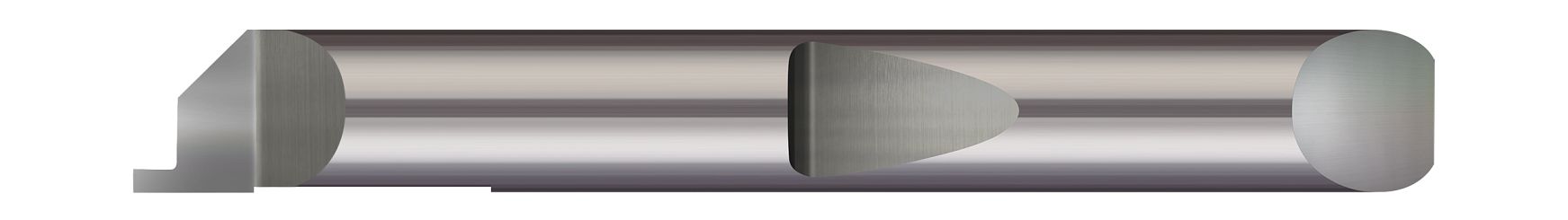

Micro 100's QFG, its offering of face grooving tools, is optimized for use with the proprietary Micro-Quik quick change system to maximize productivity through reliable accuracy and locational repeatability.
- Designed for generating square grooves in the face of the part
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
- Coolant fed enabled shank design
- Sharp corner profile
- Proprietary Micro-Quik quick change system maximizes productivity through reliable accuracy and locational repeatability
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.2500" (1/4) |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 0.750" (3/4) |
| Projection (Inch) | 0.1500" |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Centerline Offset (Inch) | 0.1250" (1/8) |
| Length from Holder | 0.853" |
| Overall Length (Inch) | 2" (2) |
| Overall Reach (Inch) | 0.750" (3/4) |
| Tooth Width (Inch) | 0.0620" (1/16) |
