Product Specifications
| Manufacturer Part Number | QBT4-100200X |
| Minimum Bore Diameter (Decimal Inch) | 0.1100" |
| Minimum Bore Diameter (mm) | 2.80mm |
| Maximum Bore Diameter (Decimal Inch) | 0.200" |
| Projection (Decimal Inch) | 0.0150" |
| Projection (Inch) | 1/64" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Projection (Decimal Inch) | 3/16" |
| Shank Diameter(mm) | 0.0063" |
| Corner Radius (Decimal Inch) | 0.004" |
| Hand Direction | Right Hand |
| Length from Holder (Decimal Inch) | 0.590" |
| Neck Diameter (Decimal Inch) | 0.0850" |
| Overall Length (Decimal Inch) | 1.50" |
| Overall Length (Inch) | 1-1/2" |
| Coating | AlTiN |

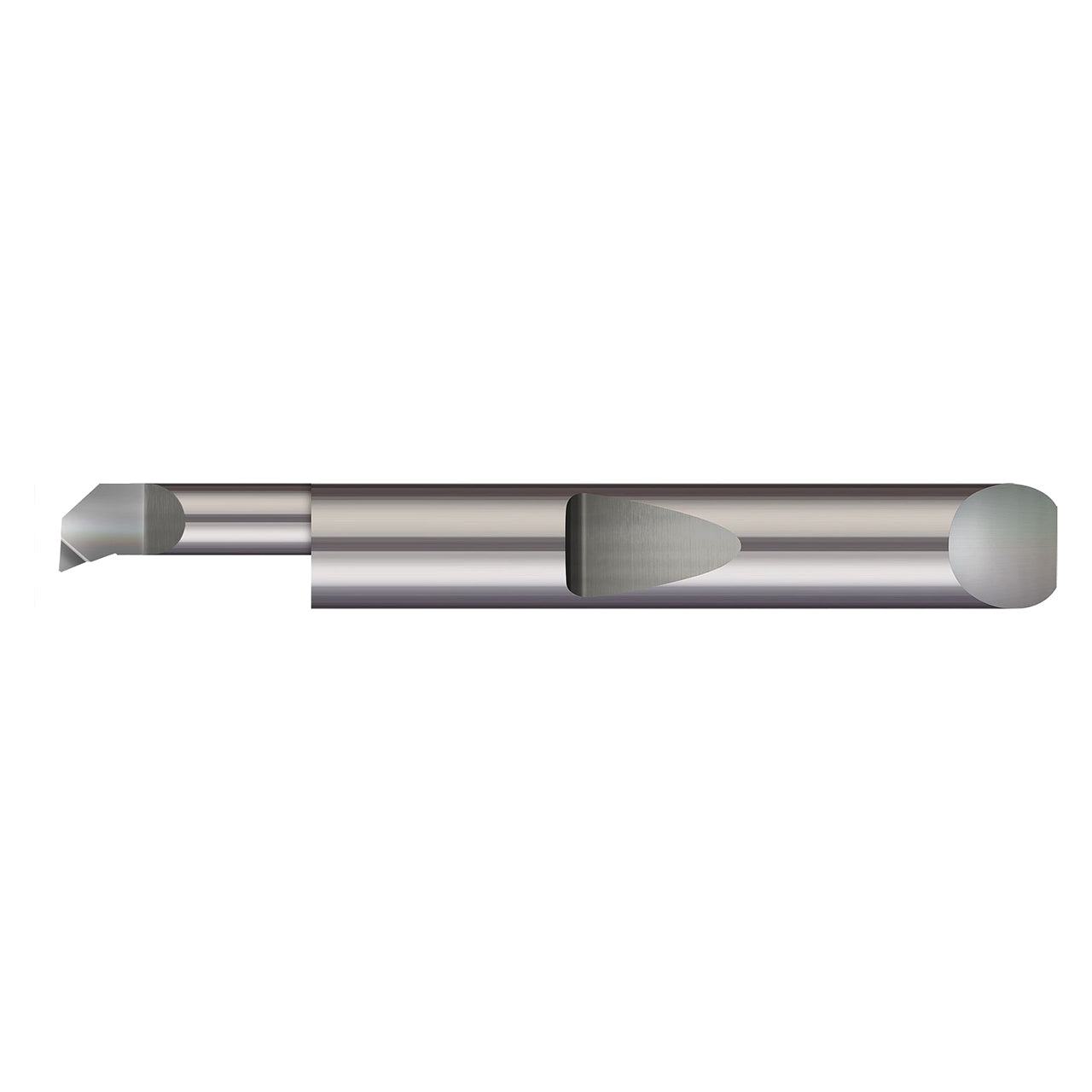

| Product Type | Boring Bar |
