Product Specifications
| Manufacturer Part Number | QBB8-230500 |
| Minimum Bore Diameter (Decimal Inch) | 0.250" |
| Minimum Bore Diameter (Inch) | 1/4" |
| Head Width (Decimal Inch) | 0.230" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 0.500" |
| Maximum Bore Depth (Inch) | 1/2" |
| Projection (Decimal Inch) | 0.058" |
| Shank Diameter (Decimal Inch) | 0.312" |
| Shank Diameter (Inch) | 5/16" |
| Centerline Offset | 0.0738" |
| Corner Radius (Decimal Inch) | 0.008" |
| Length from Holder (Decimal Inch) | 0.853" |
| Neck Diameter (Decimal Inch) | 0.172" |
| Neck Diameter (Inch) | 11/64" |
| Overall Length (Decimal Inch) | 2.000" |
| Overall Length (Inch) | 2" |
| Coating | Uncoated |

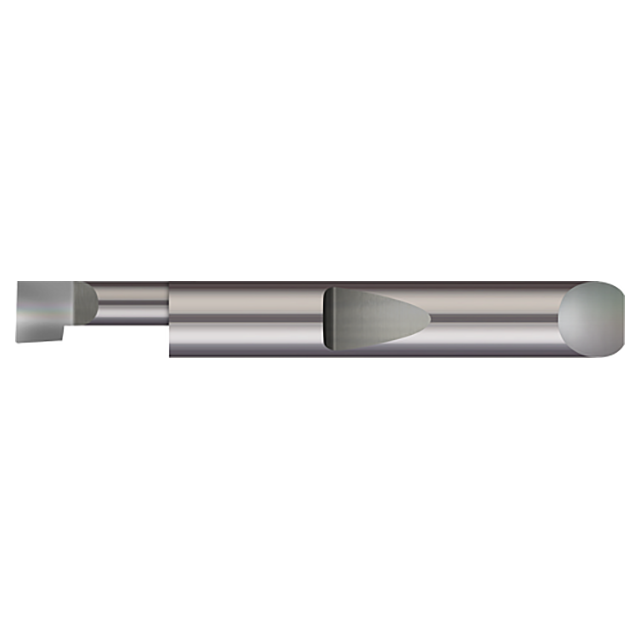

| Product Type | Quick Change Boring Tool |
