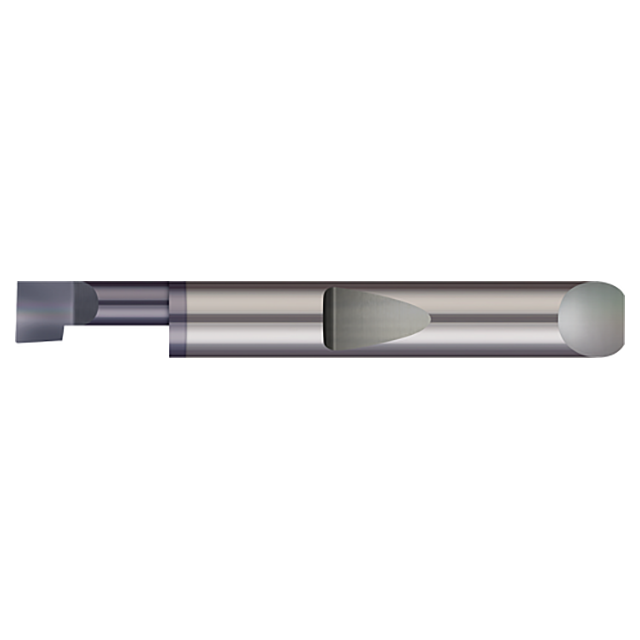

Product Specifications
| Manufacturer Part Number | QBB8-1801000X |
| Minimum Bore Diameter (Decimal Inch) | 0.196" |
| Minimum Bore Diameter (mm) | 5.00mm |
| Head Width (Decimal Inch) | 0.180" |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 1.000" |
| Maximum Bore Depth (Inch) | 1" |
| Projection (Decimal Inch) | 0.045" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (Inch) | 1/4" |
| Centerline Offset | 0.0550" |
| Corner Radius (Decimal Inch) | 0.008" |
| Length from Holder (Decimal Inch) | 1.353" |
| Neck Diameter (Decimal Inch) | 0.135" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Coating | AlTiN |
| Product Type | Quick Change Boring Tool |
