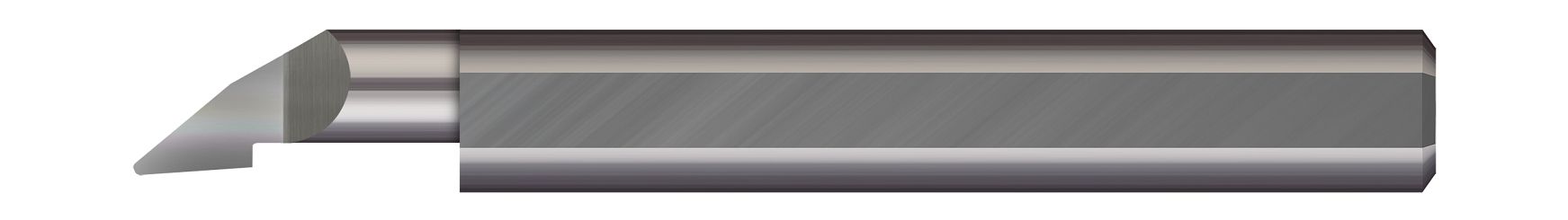

Micro 100's fully stocked, solid carbide axial profiling tools for turning applications are engineered for both radial and axial profiling, and feature a coolant fed enabled shank design. Further, this tool is engineered with split geometry to make the tool as rigid as possible.
- Designed for both radial and axial profiling
- Unique design maximizes tool versitilty and part feature creation
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Coolant fed enabled shank design
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.4800" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 1" (1) |
| Projection (Inch) | 0.0500" |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Centerline Offset (Inch) | 0.2100" |
| Radius (Inch) | 0.0080" |
| Neck Diameter (Inch) | 0.4100" |
| Overall Length (Inch) | 3" (3) |
