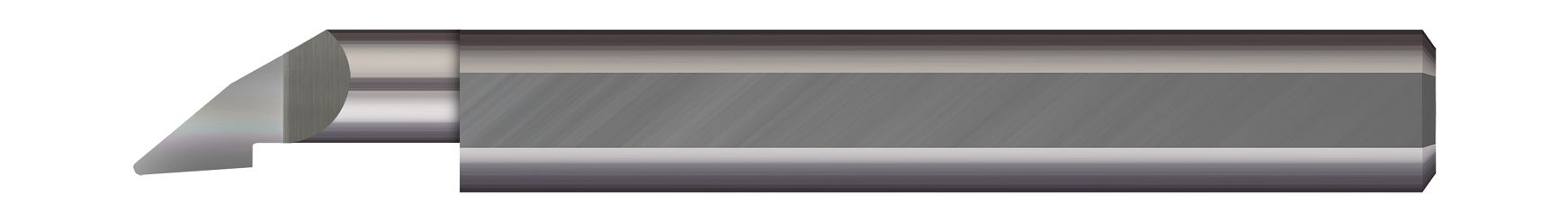

Micro 100's fully stocked, solid carbide axial profiling tools for turning applications are engineered for both radial and axial profiling, and feature a coolant fed enabled shank design. Further, this tool is engineered with split geometry to make the tool as rigid as possible.
- Designed for both radial and axial profiling
- Unique design maximizes tool versitilty and part feature creation
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Coolant fed enabled shank design
- Corner radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.1760" |
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Max Bore Depth (Inch) | 0.375" (3/8) |
| Projection (Inch) | 0.0300" |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Centerline Offset (Inch) | 0.0663" |
| Radius (Inch) | 0.0080" |
| Neck Diameter (Inch) | 0.1300" |
| Overall Length (Inch) | 2" (2) |
