Micro 100

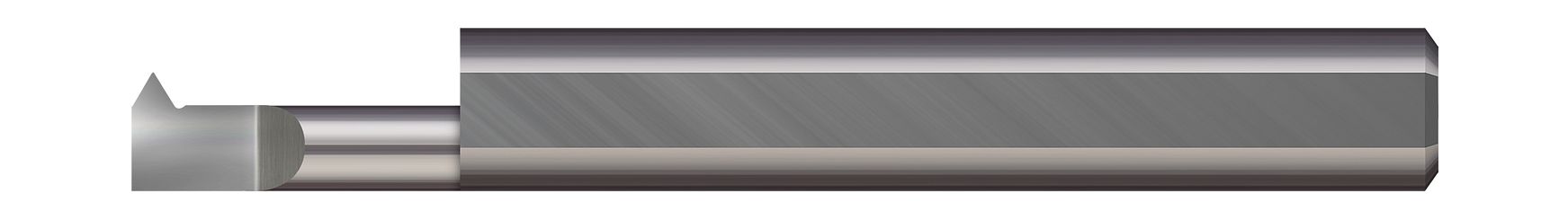

Micro 100 ITL-060200X | 0.0700" Minimum Bore Diameter x 0.200" Maximum Bore Depth x 0.0340" Flat x 1/8" Shank x 1-1/2" OAL AlTiN Coated Carbide Threading Tool

Micro 100 ITL-060200X | 0.0700" Minimum Bore Diameter x 0.200" Maximum Bore Depth x 0.0340" Flat x 1/8" Shank x 1-1/2" OAL AlTiN Coated Carbide Threading Tool

SKU: 15020585

$45.35 USD
$45.35 USD $45.35 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

Designed for threading multiple thread pitches (ANSI, UN, and Metric 60 Degree) in a left hand threading application, this left hand, single point threading tool features a corner radius profile for added strength.

  • Designed for threading mulitple thread pitches (ANSI, UN, and Metric 60 Degree) in a left hand threading application
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Corner radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.0700"
Hand Direction Left Hand
Finish/Coating AlTiN
Max Bore Depth (Inch) 0.200"
Projection (Inch) 0.0200"
Shank Diameter (Inch) 0.1250" (1/8)
Centerline Offset (Inch) -0.0025"
Offset (Inch) 0.012"
Radius (Inch) 0.0010"
Angle per Side 30
Included Angle 60
Face Dimension 0.063" (1/16)
Neck Diameter (Inch) 0.0350" (.9 mm)
Overall Length (Inch) 1.50" (1-1/2)
Split Length (Inch) 0.030"
Thread Size 48-76
Tooth Width (Inch) 0.0340"
