Product Specifications

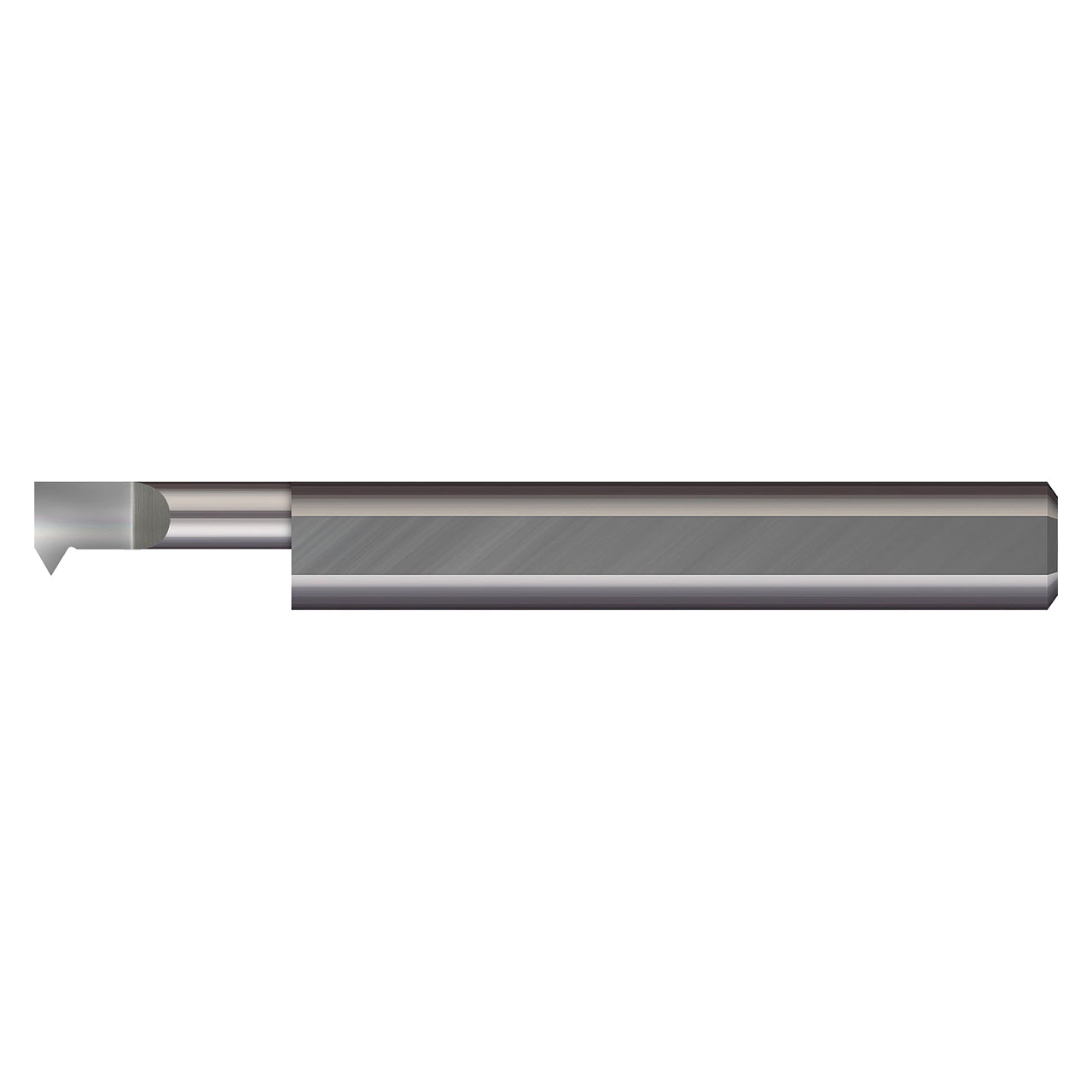

| Manufacturer Part Number | IT-100750 |
| Minimum Bore Diameter (Decimal Inch) | 0.1100" |
| Minimum Bore Diameter (mm) | 2.80mm |
| Maximum Bore Diameter (Decimal Inch) | 0.750" |
| Maximum Bore Diameter (Inch) | 3/4" |
| Head Width (Decimal Inch) | 0.100" |
| Projection (Decimal Inch) | 0.0250" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter(mm) | 0.0375" |
| Offset (Decimal Inch) | 0.014" |
| Radius (Decimal Inch) | 0.0020" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Hand Direction | Right Hand |
| Neck Diameter (Decimal Inch) | 0.0700" |
| Overall Length (Decimal Inch) | 2.00" |
| Overall Length (Inch) | 2" |
| Thread Size | 24-56" |
| TPI | 24-56 TPI |
| Coating | Uncoated |
| Product Type | Single Point Threading Tool |
