Product Specifications
| Manufacturer Part Number | IT-050250 |
| Minimum Bore Diameter (Decimal Inch) | 0.0550" |
| Minimum Bore Diameter (mm) | 1.40mm |
| Maximum Bore Diameter (Decimal Inch) | 0.250" |
| Maximum Bore Diameter (Inch) | 1/4" |
| Projection (Decimal Inch) | 0.0200" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter(mm) | 0.0125" |
| Offset (Decimal Inch) | 0.012" |
| Radius (Decimal Inch) | 0.0010" |
| Angle per Side (Degree) | 30 Degree |
| Included Angle (Degree) | 60 Degree |
| Hand Direction | Right Hand |
| Neck Diameter (Decimal Inch) | 0.0250" |
| Overall Length (Decimal Inch) | 1.50" |
| Overall Length (Inch) | 1-1/2" |
| Thread Size | 28-72" |
| TPI | 28-72 TPI |
| Coating | Uncoated |

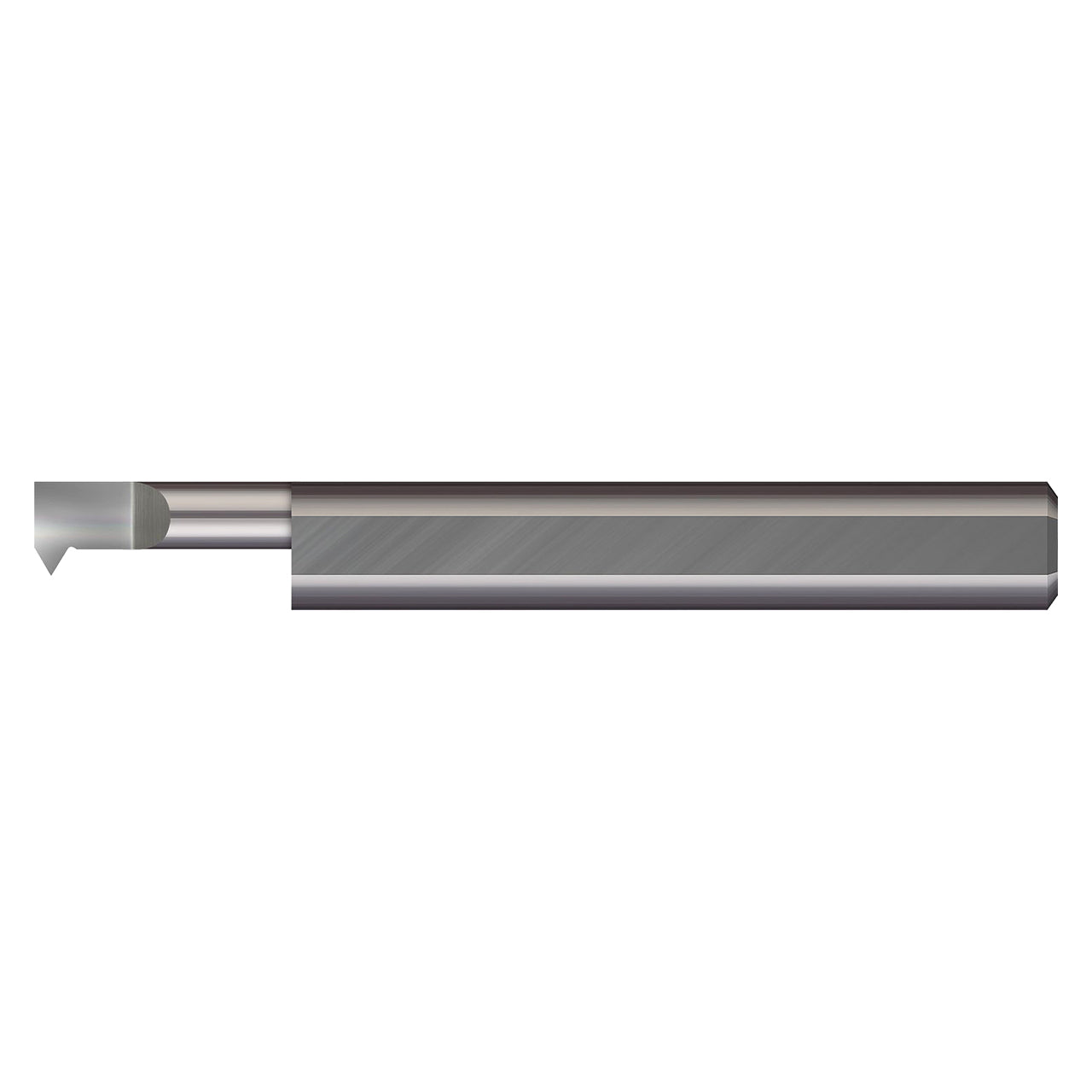

| Product Type | Single Point Threading Tool |
