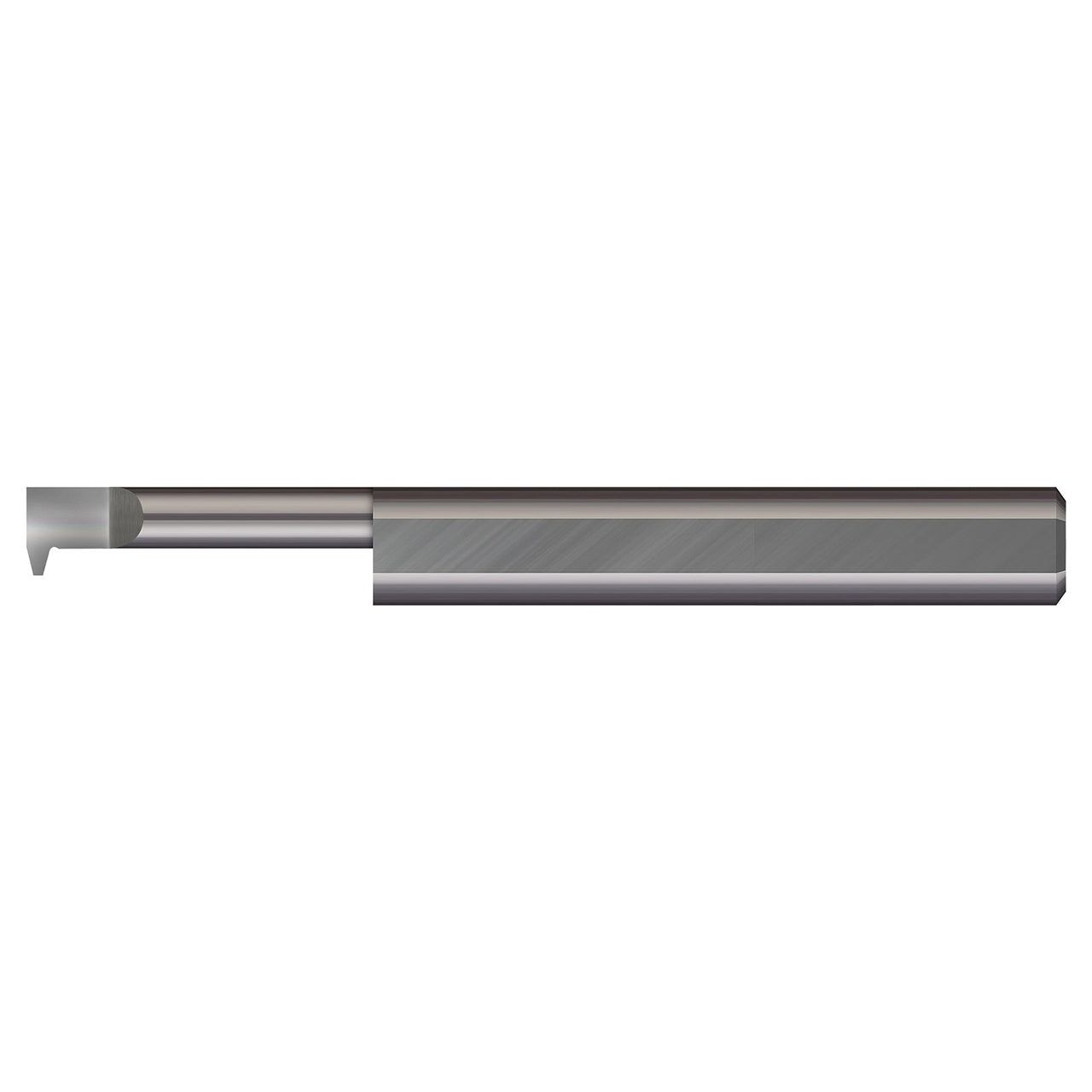

Micro 100's ACME solid carbide thread tools are optimized for cutting pitch-specific ACME threads, and feature a polished split face for improved edge retention and chip evacuation while reducing galling.
Features:- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | IAT2-400-16 |
| Minimum Bore Diameter (Inch) | 0.1870" (3/16) |
| Maximum Bore Depth (Inch) | 0.400" |
| Projection (Inch) | 0.0450" |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Centerline Offset (Inch) | 0.0400" |
| Offset (Inch) | 0.035" |
| Flat Width (Inch) | 0.021" |
| Overall Length (Inch) | 2.50" (2-1/2) |
| Neck Diameter (Inch) | 0.1150" |
| Threads Per Inch | 16 |
| Hand Direction | Right Hand |
| Coating | Uncoated |
