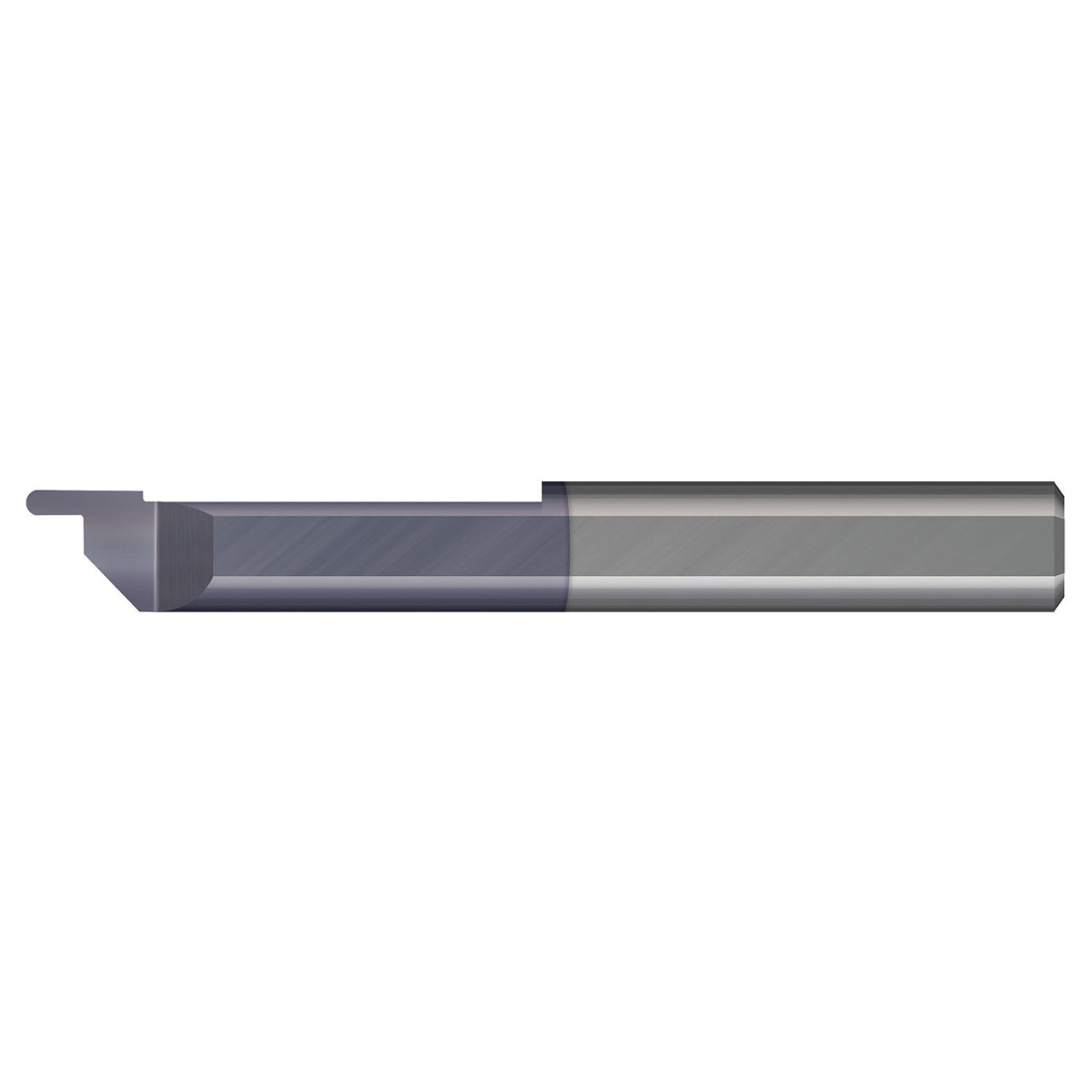

Our internal tooth full radius face grooving tool is engineered to generate a full radius groove around a boss in the face of a part, and feature a polished split face for improved edge retention.
Features:- Significantly reduces cycle times, as right hand design allows for multiple tools to be run simultaneously
- Relief ground along maximum turn depth (L2) to avoid interference during long turning applications
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split face geometry provides optimal edge strength
- Full radius profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | FGIF-8466X |
| Minimum Bore Diameter (Inch) | 0.3650" |
| Maximum Bore Depth (Inch) | 1.250" (1-1/4) |
| Projection (Inch) | 0.1250" (1/8) |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Centerline Offset (Inch) | 0.1775" |
| Radius (Inch) | 0.0310" (1/32) |
| Overall Length (Inch) | 2.50" (2-1/2) |
| Overall Reach (Inch) | 1.250" (1-1/4) |
| Neck Diameter (Inch) | 0.3400" |
| Tooth Width (Inch) | 0.0620" (1/16) |
| Hand Direction | Right Hand |
| Coating | AlTiN |
