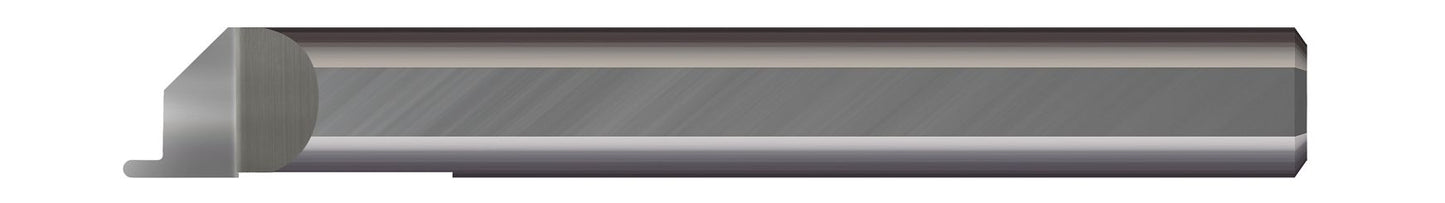

Micro 100 FGF-125-025-050 | 1/8" Minimum Bore Diameter x 3/8" Maximum Bore Depth x 0.0250" Width x 0.0500" Projection x 1/8" Shank x 1-1/2" OAL Uncoated Carbide Grooving Tool

Micro 100 FGF-125-025-050 | 1/8" Minimum Bore Diameter x 3/8" Maximum Bore Depth x 0.0250" Width x 0.0500" Projection x 1/8" Shank x 1-1/2" OAL Uncoated Carbide Grooving Tool

SKU: 25175501

$28.45 USD
$28.45 USD $28.45 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

Designed for generating full radius grooves in the face of a part, this solid carbide Micro 100 Grooving Tool features a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for generating full radius grooves in the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Full radius profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid Carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.1250" (1/8)
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 0.375" (3/8)
Projection (Inch) 0.0500"
Shank Diameter (Inch) 0.1250" (1/8)
Centerline Offset (Inch) 0.0625" (1/16)
Radius (Inch) 0.0125"
Overall Length (Inch) 1.50" (1-1/2)
Overall Reach (Inch) 0.375" (3/8)
Tooth Width (Inch) 0.0250"
