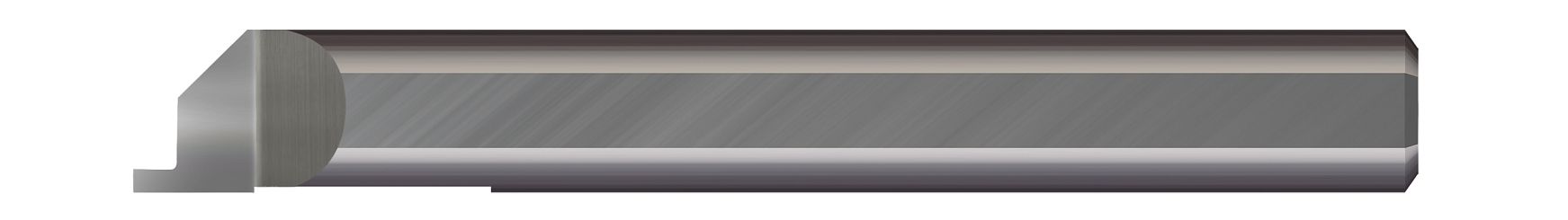

Generate grooves in the face of a part with Micro 100's FG product line of face grooving tools, which feature a polished split face for improved edge retention and chip evacuation while reducing galling.
- Designed for generating square grooves in the face of the part
- Polished split face for improved edge retention and chip evacuation while reducing galling
- Split geometry makes the tool as rigid as possible
- Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
- Sharp corner profile
- Lockdown flat automatically locates tool on center
- AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Min Bore Diameter (Inch) | 0.6250" (5/8) |
| Hand Direction | Right Hand |
| Finish/Coating | AlTiN |
| Max Bore Depth (Inch) | 0.430" |
| Projection (Inch) | 0.1000" |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Centerline Offset (Inch) | 0.3125" (5/16) |
| Face Dimension | 0.313" (5/16) |
| Overall Length (Inch) | 3.50" (3-1/2) |
| Overall Reach (Inch) | 0.430" |
| Split Length (Inch) | 0.430" |
| Tooth Width (Inch) | 0.1560" (5/32) |
