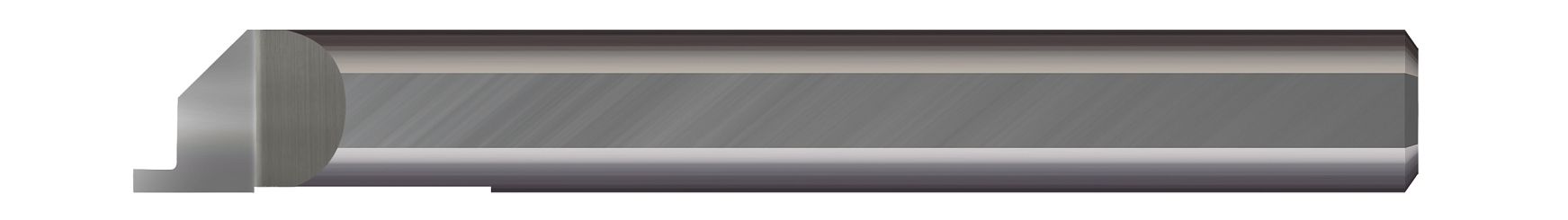

Micro 100 FG-375-125-200 | 3/8" Minimum Bore Diameter x 1-1/4" Maximum Bore Depth x 1/8" Width x 0.2000" Projection x 3/8" Shank x 2-1/2" OAL Uncoated Carbide Grooving Tool

Micro 100 FG-375-125-200 | 3/8" Minimum Bore Diameter x 1-1/4" Maximum Bore Depth x 1/8" Width x 0.2000" Projection x 3/8" Shank x 2-1/2" OAL Uncoated Carbide Grooving Tool

SKU: 25175417

$61.15 USD
$61.15 USD $61.15 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

Generate grooves in the face of a part with Micro 100's FG product line of face grooving tools, which feature a polished split face for improved edge retention and chip evacuation while reducing galling.

  • Designed for generating square grooves in the face of the part
  • Polished split face for improved edge retention and chip evacuation while reducing galling
  • Split geometry makes the tool as rigid as possible
  • Relief ground along Maximum Bore Depth (L2) to avoid interference during deep hole applications
  • Sharp corner profile
  • Lockdown flat automatically locates tool on center
  • AlTiN coated option provides added lubricity and increased wear resistance in difficult to machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Min Bore Diameter (Inch) 0.3750" (3/8)
Hand Direction Right Hand
Finish/Coating Uncoated
Max Bore Depth (Inch) 1.250" (1-1/4)
Projection (Inch) 0.2000"
Shank Diameter (Inch) 0.3750" (3/8)
Centerline Offset (Inch) 0.1875" (3/16)
Overall Length (Inch) 2.50" (2-1/2)
Overall Reach (Inch) 1.125" (1-1/8)
Tooth Width (Inch) 0.1250" (1/8)
