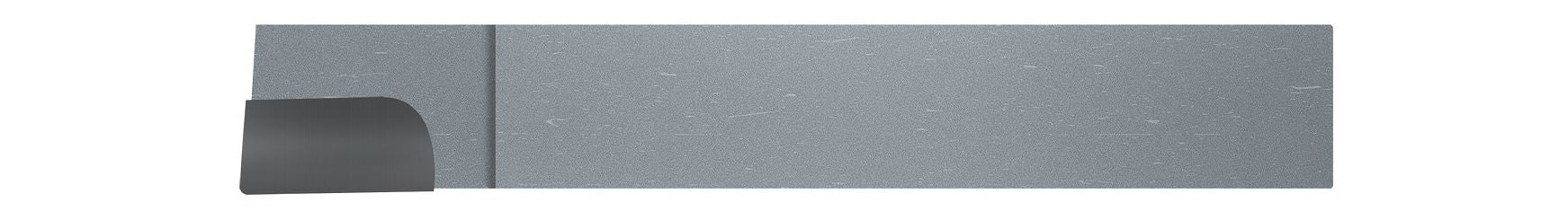

Designed for right hand turning and facing in lathe applications, this AR style brazed forming tool is ground with side rake to provide a positive cutting action and better chip evacuation.
- Designed for right hand turning and facing in lathe applications
- Ground with side rake to provide a positive cutting action and better chip evacuation
- Corner radius profile
- Solid carbide tipped with zinc coated steel shank for durability and corrosion resistance
- Available in industry standard fractional shank sizes
- Ground in the USA
Product Specifications
| Hand Direction | Right Hand |
| Finish/Coating | Uncoated |
| Corner Radius (Inch) | 0.015" (1/64) |
| Brazed Insert Length (Inch) | 0.500" (1/2) |
| Brazed Insert Width (Inch) | 0.240" |
| Overall Length (Inch) | 4.50" (4-1/2) |
| Shank Height (Inch) | 0.7500" (3/4) |
| Shank Width (Inch) | 0.7500" (3/4) |
