Micro 100

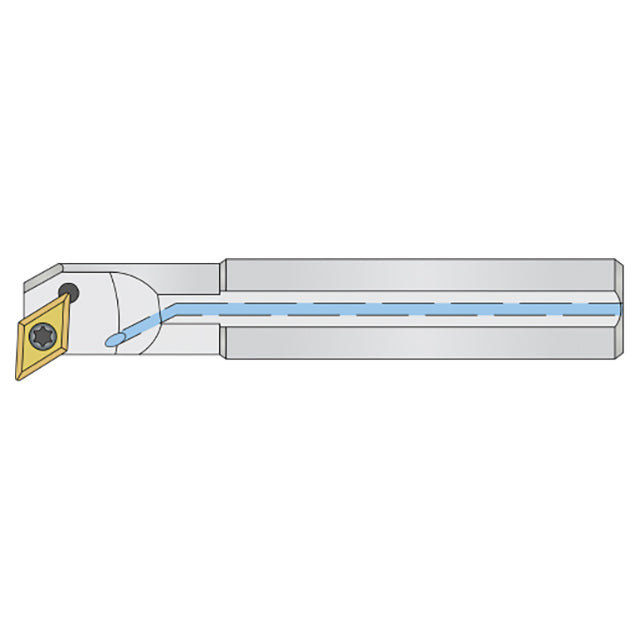

Micro 100 20-0931 | 0.4900" Minimum Bore Diameter x 3/8" Shank x 4-1/2" OAL A06J SDUCR 2 Yes Right Hand Indexable Boring Bar, DCMT 21.51 Insert Style

Micro 100 20-0931 | 0.4900" Minimum Bore Diameter x 3/8" Shank x 4-1/2" OAL A06J SDUCR 2 Yes Right Hand Indexable Boring Bar, DCMT 21.51 Insert Style

SKU: 23046367

$93.50 USD
$93.50 USD $93.50 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 5 Grams

Ver todos los detalles
Product Specifications
Min Bore Diameter (Decimal Inch) 0.4900"
Hand Direction Right Hand
Finish/Coating Uncoated
Shank Diameter (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.3750"
Centerline Offset (Decimal Inch) 0.2750"
Indexable K Angle 93 Degree
Indexable Nomenclature A06J SDUCR 2
Insert Style DCMT 21.51
Micro 100 Insert Part 50-1200
Overall Length (Inch) 4-1/2"
Overall Length (Decimal Inch) 4.50"
