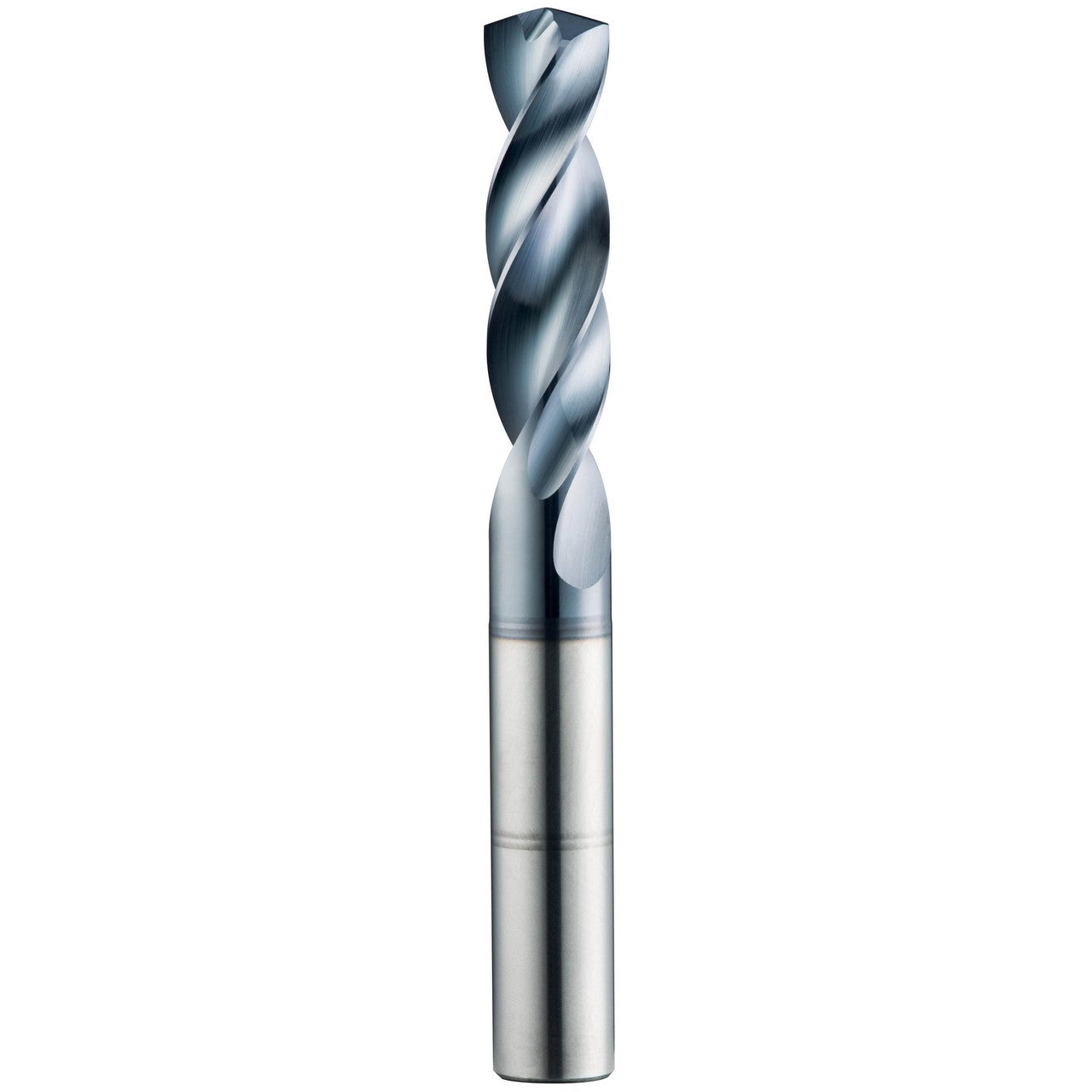

Features:
- Double margin design improves accuracy and surface finish along with increased strength for aggressive drilling
- Specialized selfcentering notched point eliminates the need for spot drilling decreasing thrust and deflection
- Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
- Recommended for materials ≤ 56 HRC (≤ 577 BHN)
Product Specifications
| Cutting Diameter (mm) | 18.5mm |
| Shank Diameter (mm) | 20.0mm |
| Length of Cut (mm) | 101mm |
| Overall Length (mm) | 153mm |
| Shank Length (mm) | 50.0mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Cleared Length (mm) | 77.1 mm |
| Helix Angle | 32 Degree |
| Point Angle | 145 Degree |
| Coating | AlTiN |
| Number of Flutes | 2 |
