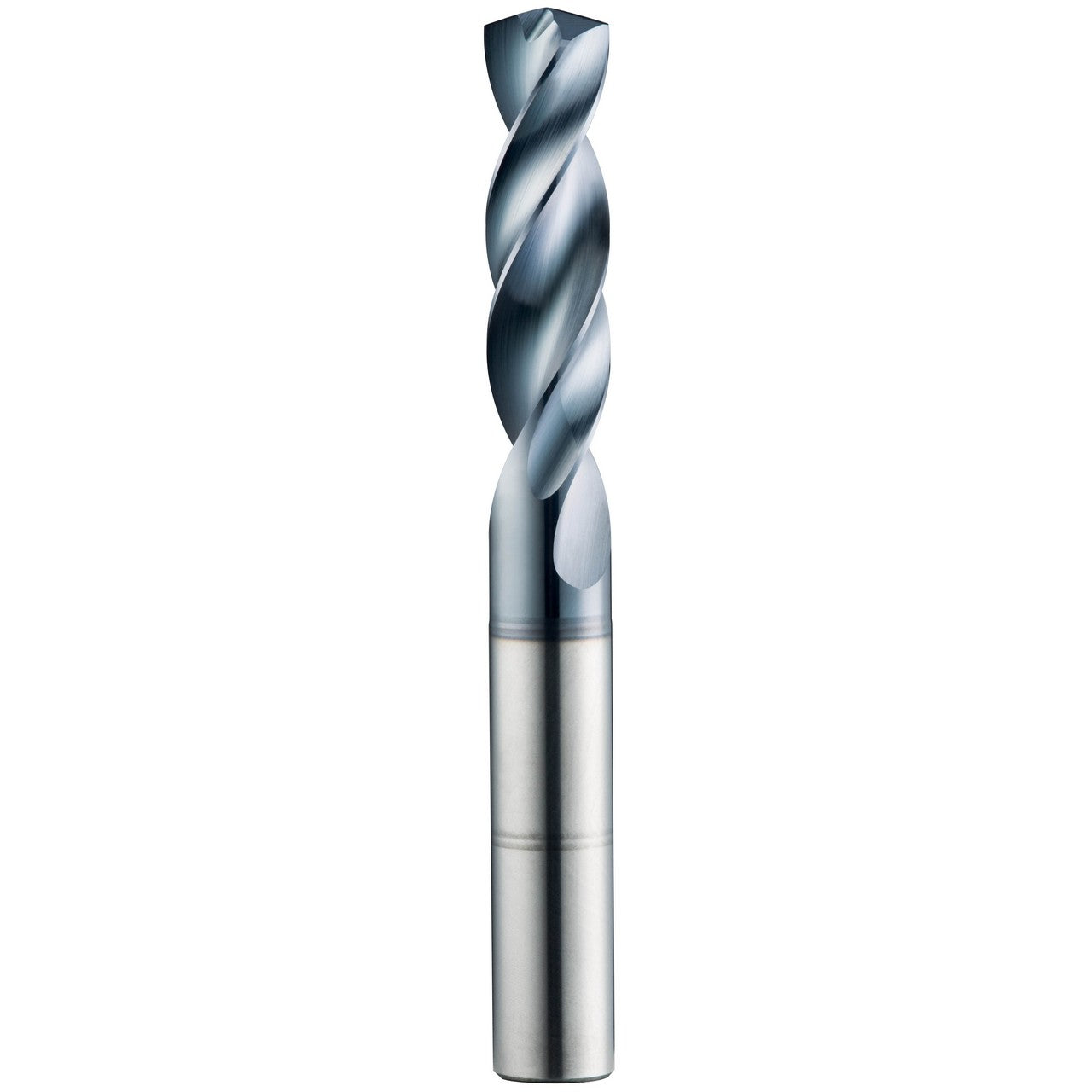

Features:
- Double margin design improves accuracy and surface finish along with increased strength for aggressive drilling
- Specialized selfcentering notched point eliminates the need for spot drilling decreasing thrust and deflection
- Engineered edge protection improves edge strength and reduces edge fatigue allowing for increased feed rates
- Recommended for materials ≤ 56 HRC (≤ 577 BHN)
Product Specifications
| Cutting Diameter (Inch) | 47/64" |
| Shank Diameter (Inch) | 3/4" |
| Length of Cut (Inch) | 2-3/4" |
| Overall Length (Inch) | 4-7/8" |
| Shank Length (Inch) | 1.8906" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Cleared Length (Inch) | 2.3125" |
| Helix Angle | 32 Degree |
| Point Angle | 145 Degree |
| Coating | AlTiN |
| Number of Flutes | 2 |
