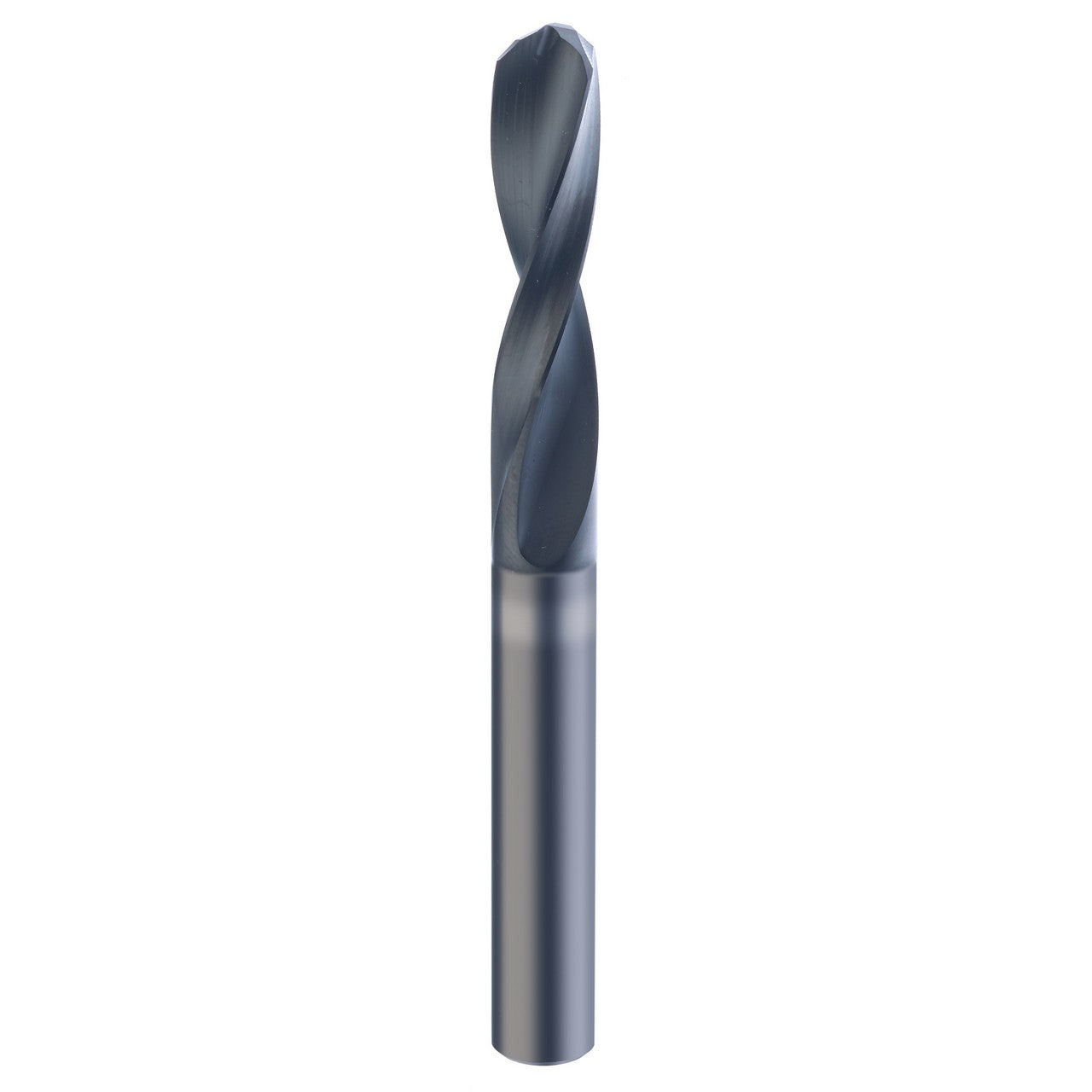

SGS 50028 | 10.0mm Diameter x 10.0mm Shank x 47.0mm LOC x 89.0mm OAL 2 Flute Crystalline Diamond Coated Screw Machine Length Drill Bit

SGS 50028 | 10.0mm Diameter x 10.0mm Shank x 47.0mm LOC x 89.0mm OAL 2 Flute Crystalline Diamond Coated Screw Machine Length Drill Bit

SKU: 10229052

$692.29 USD
$1,331.32 USD $692.29 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 82 Grams

Ver todos los detalles

Features:

  • Double margin design stabilizes the drill for greater hole accuracy and improved surface finish
  • Notched point reduces thrust force over conventional designs
  • 8 facet point reduces fiber breakout and delamination on exit
  • 90 degree secondary chamfer angle improves hole entrance and exit quality

Product Specifications
Cutting Diameter (mm) 10.0mm
Shank Diameter (mm) 10.0mm
Length of Cut (mm) 47.0mm
Overall Length (mm) 89.0mm
Shank Length (mm) 40.0mm
Cut of Direction RHC
Flute Type Spiral
Cleared Length (mm) 47 mm
Helix Angle 20 Degree
Point Angle 145 Degree
Coating Crystalline Diamond
Number of Flutes 2
