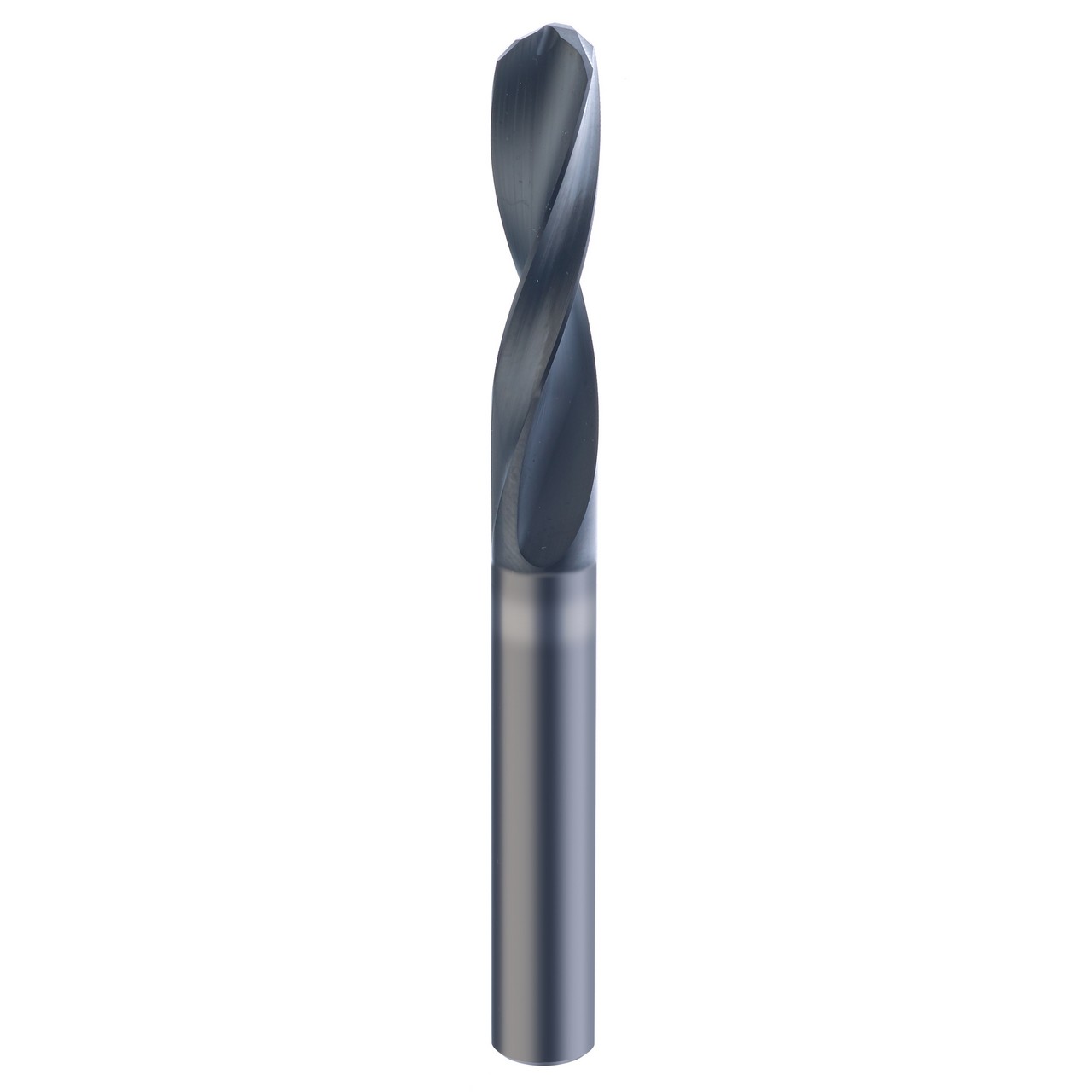

Features:
- Double margin design stabilizes the drill for greater hole accuracy and improved surface finish
- Notched point reduces thrust force over conventional designs
- 8 facet point reduces fiber breakout and delamination on exit
- 90 degree secondary chamfer angle improves hole entrance and exit quality
Product Specifications
| Cutting Diameter (Inch) | 0.251" |
| Shank Diameter (Inch) | 0.313" |
| Length of Cut (Inch) | 1.312" |
| Overall Length (Inch) | 3.125" |
| Shank Length (Inch) | 1.438" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Cleared Length (Inch) | 1.050" |
| Helix Angle | 20 Degree |
| Point Angle | 145 Degree |
| Coating | Crystalline Diamond |
| Number of Flutes | 2 |
