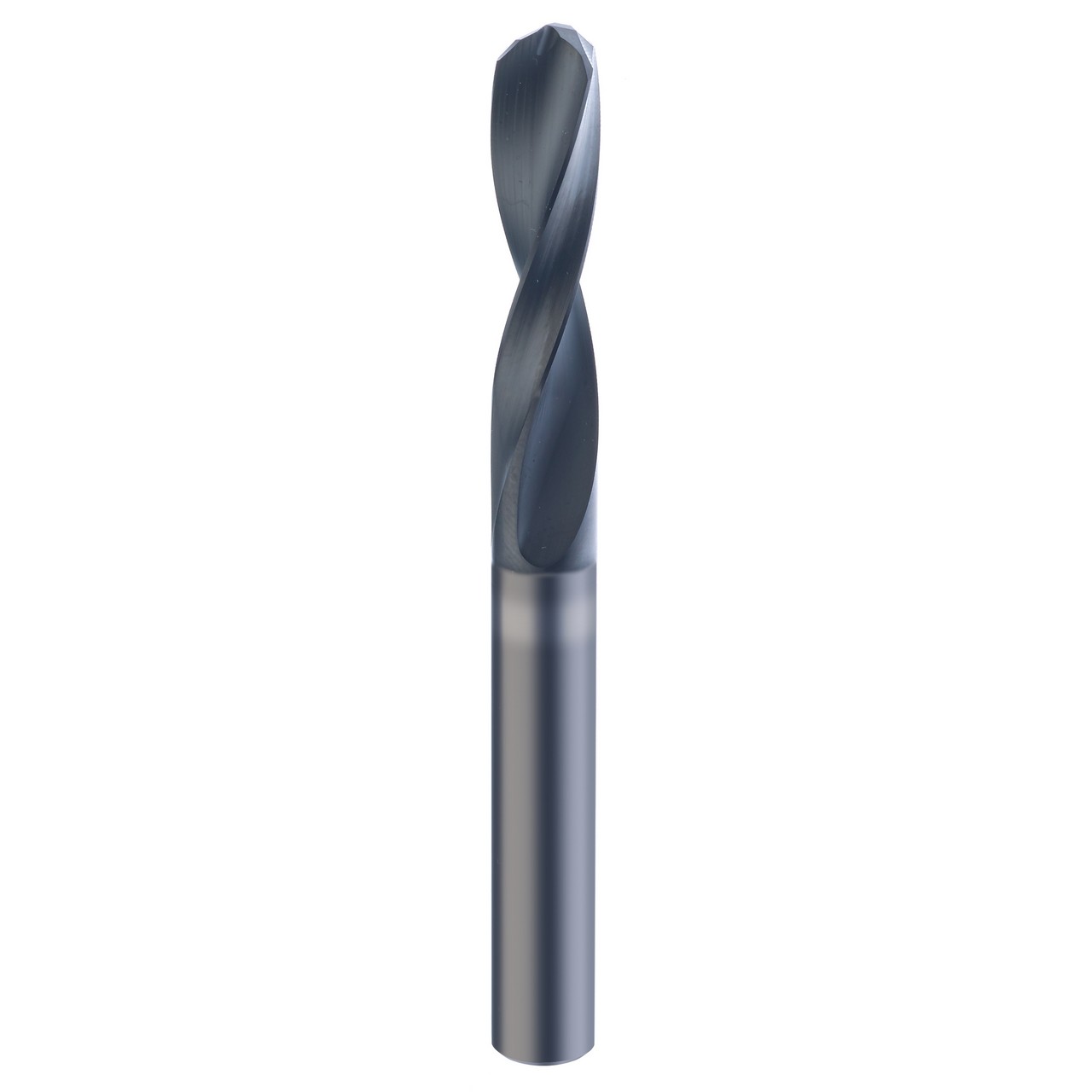

SGS 50012 | 3/16" Diameter x 1/4" Shank x 1" LOC x 2-5/8" OAL 2 Flute Crystalline Diamond Coated Screw Machine Length Drill Bit

SGS 50012 | 3/16" Diameter x 1/4" Shank x 1" LOC x 2-5/8" OAL 2 Flute Crystalline Diamond Coated Screw Machine Length Drill Bit

SKU: 10229036

$261.66 USD
$503.19 USD $261.66 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Ver todos los detalles

Features:

  • Double margin design stabilizes the drill for greater hole accuracy and improved surface finish
  • Notched point reduces thrust force over conventional designs
  • 8 facet point reduces fiber breakout and delamination on exit
  • 90 degree secondary chamfer angle improves hole entrance and exit quality

Product Specifications
Cutting Diameter (Inch) 3/16"
Shank Diameter (Inch) 1/4"
Length of Cut (Inch) 1"
Overall Length (Inch) 2-5/8"
Shank Length (Inch) 1.438"
Cut of Direction Right Hand
Flute Type Spiral
Cleared Length (Inch) 0.8281"
Helix Angle 20 Degree
Point Angle 145 Degree
Coating Crystalline Diamond
Number of Flutes 2
