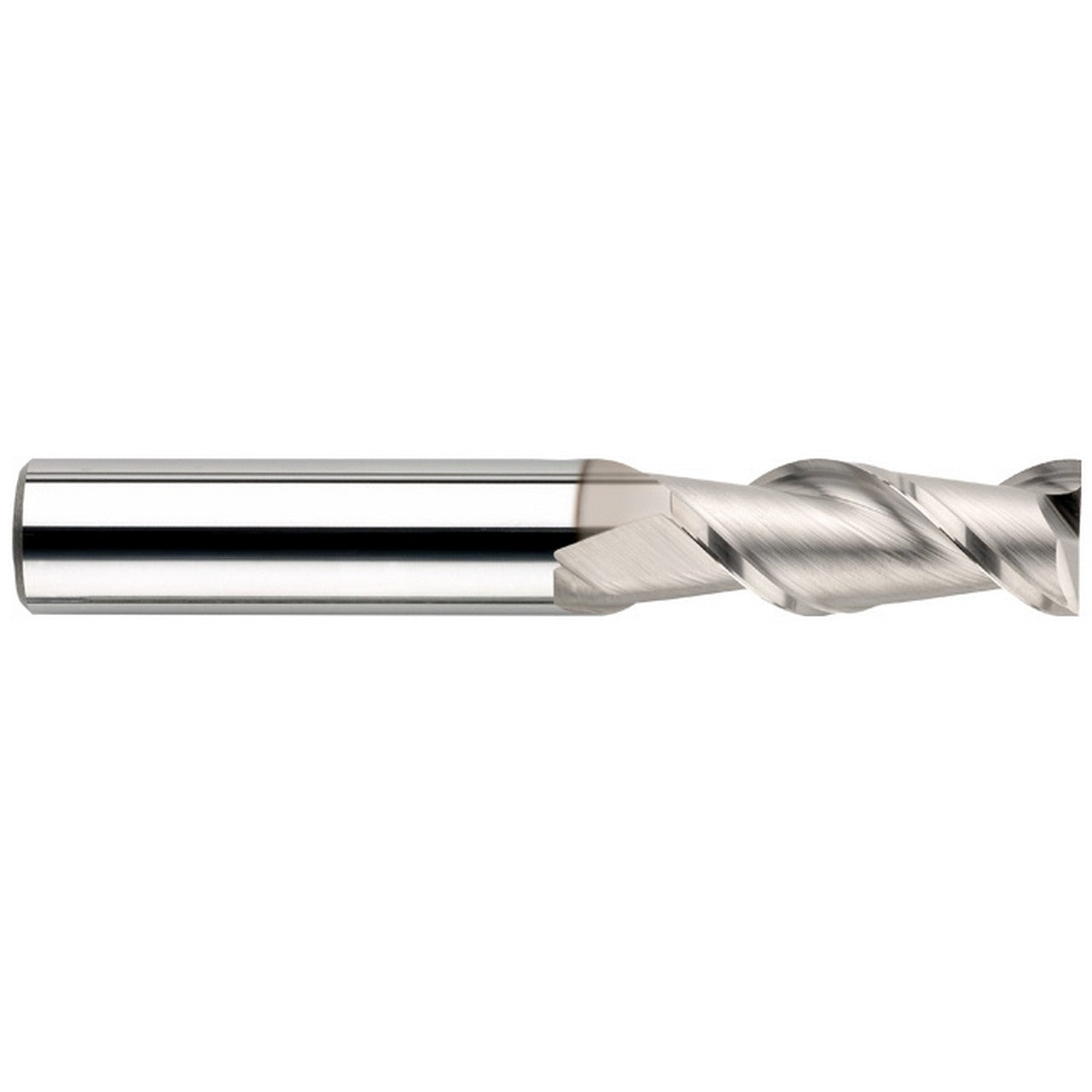

SGS 49684 | 20.0mm Diameter x 20.0mm Shank x 38.0mm LOC x 104mm OAL 2 Flute TiB2 Coated Square End Mill

SGS 49684 | 20.0mm Diameter x 20.0mm Shank x 38.0mm LOC x 104mm OAL 2 Flute TiB2 Coated Square End Mill

SKU: 25200906

Precio habitual $702.54 USD
Precio habitual $1,351.04 USD Precio de oferta $702.54 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC: 691781496849

Weight: 413 Grams

Ver todos los detalles

Features:

  • Polished ski land with primary and secondary flute wall design minimizes chip interference by directing chips away from secondary flute
  • Circular land allows for increased control at various speed and feed rates ultimately reducing chatter
  • Recommended for materials ≤ 150 BHN (≤ 7 HRC)

Product Specifications
Cutting Diameter (mm) 20.0mm
Shank Diameter (mm) 20.0mm
Length of Cut (mm) 38.0mm
Overall Length (mm) 104mm
Shank Length (mm) 66.0mm
Cut of Direction RHC
Flute Type Spiral
Helix Angle 45 Degree
Coating TiB2
Number of Flutes 2
