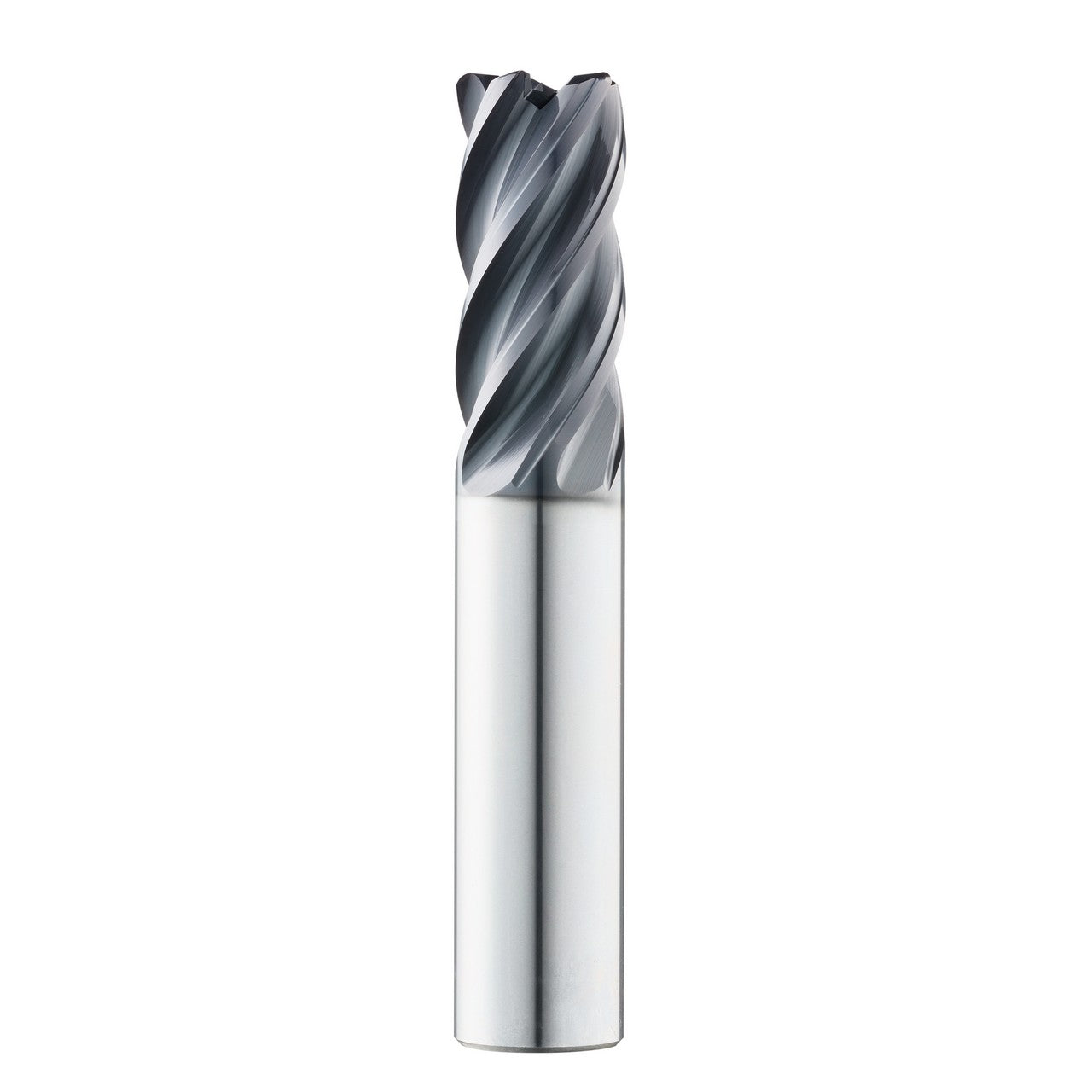

Features:
- An ideal balance of helix, indexing, flute depth, rake and relief
- Variable indexing for chatter supression and patented edge geometry for shearing and strength
- Chatter-free geometry allows deep cutting and high speed machining
- Central coolant hole delivers coolant effectively to the cutting zone enhancing chip removal when pocketing or slotting
- Excels at roughing, ramping, high speed machining and finishing in a variety of materials
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 45 HRC (≤ 420 BHN)
Product Specifications
| Cutting Diameter (mm) | 20.0mm |
| Shank Diameter (mm) | 20.0mm |
| Length of Cut (mm) | 43.0mm |
| Overall Length (mm) | 104mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Corner Radius (mm) | 3 mm |
| Helix Angle | 37 Degree |
| Coating | AlTiN |
| Number of Flutes | 5 |
