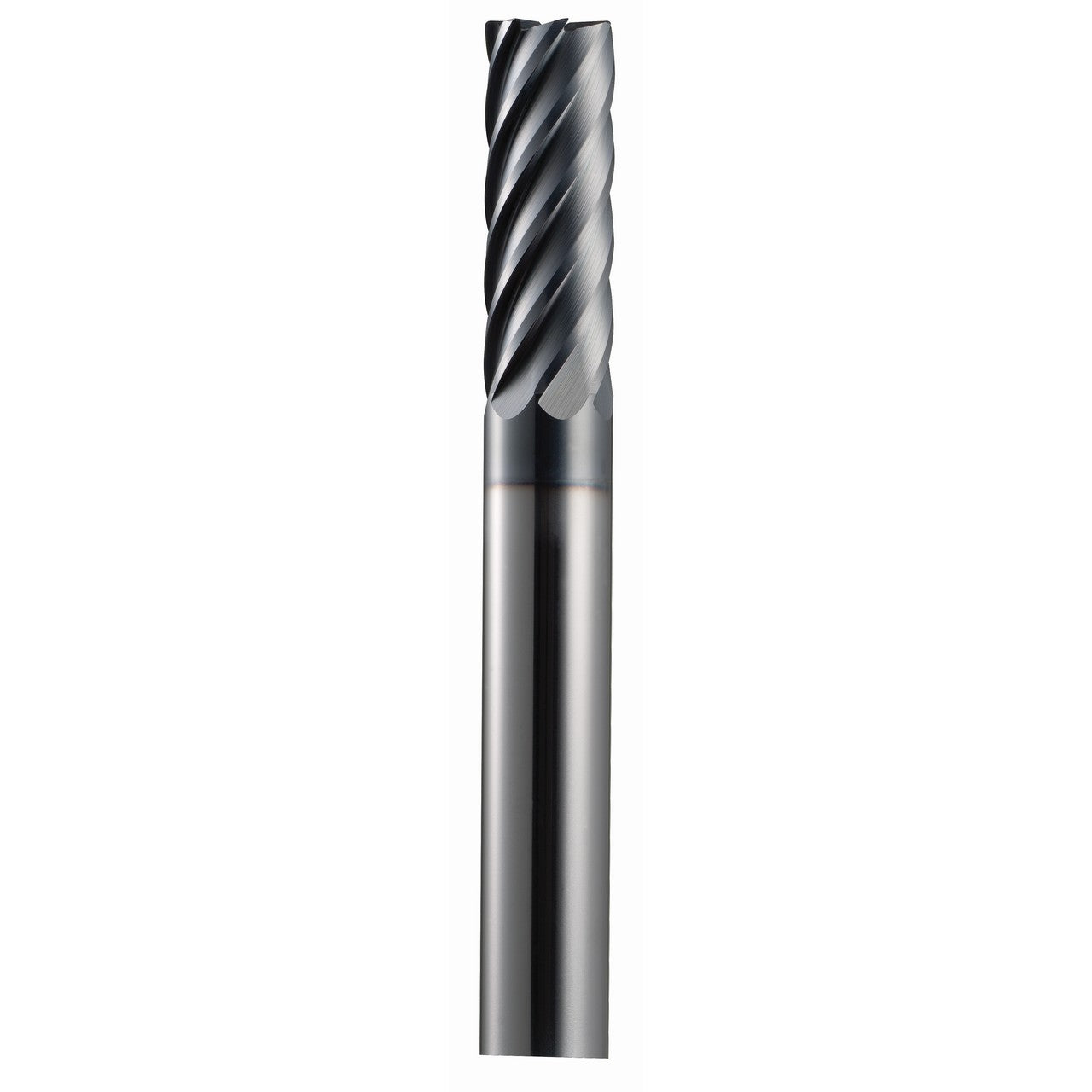

SGS 46626 | 25.0mm Diameter x 25.0mm Shank x 38.0mm LOC x 104mm OAL 11 Flute TX Coated Square End Mill

SGS 46626 | 25.0mm Diameter x 25.0mm Shank x 38.0mm LOC x 104mm OAL 11 Flute TX Coated Square End Mill

SKU: 25199607

Precio habitual $442.10 USD
Precio habitual $850.20 USD Precio de oferta $442.10 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 699 Grams

Ver todos los detalles

Features:

  • Heavy core and rigid design allow for straight walls
  • High flute count design results in smoother cutting performance and enhanced tool life in precise finishing applications
  • Enhanced corner geometry with tight tolerance corner radius
  • Recommended for materials ≤ 45 HRC (≤ 420 BHN)

Product Specifications
Cutting Diameter (mm) 25.0mm
Shank Diameter (mm) 25.0mm
Length of Cut (mm) 38.0mm
Overall Length (mm) 104mm
Shank Length (mm) 66.0mm
Cut of Direction RHC
Flute Type Spiral
Helix Angle 35 Degree
Coating TX
Number of Flutes 11
