Features:
- Circular land allows for increased control at various speed and feed rates and reduces chatter
- Open fluting for deep slotting and profiling
- Polished flutes maximize chip evacuation and provides enhanced finish

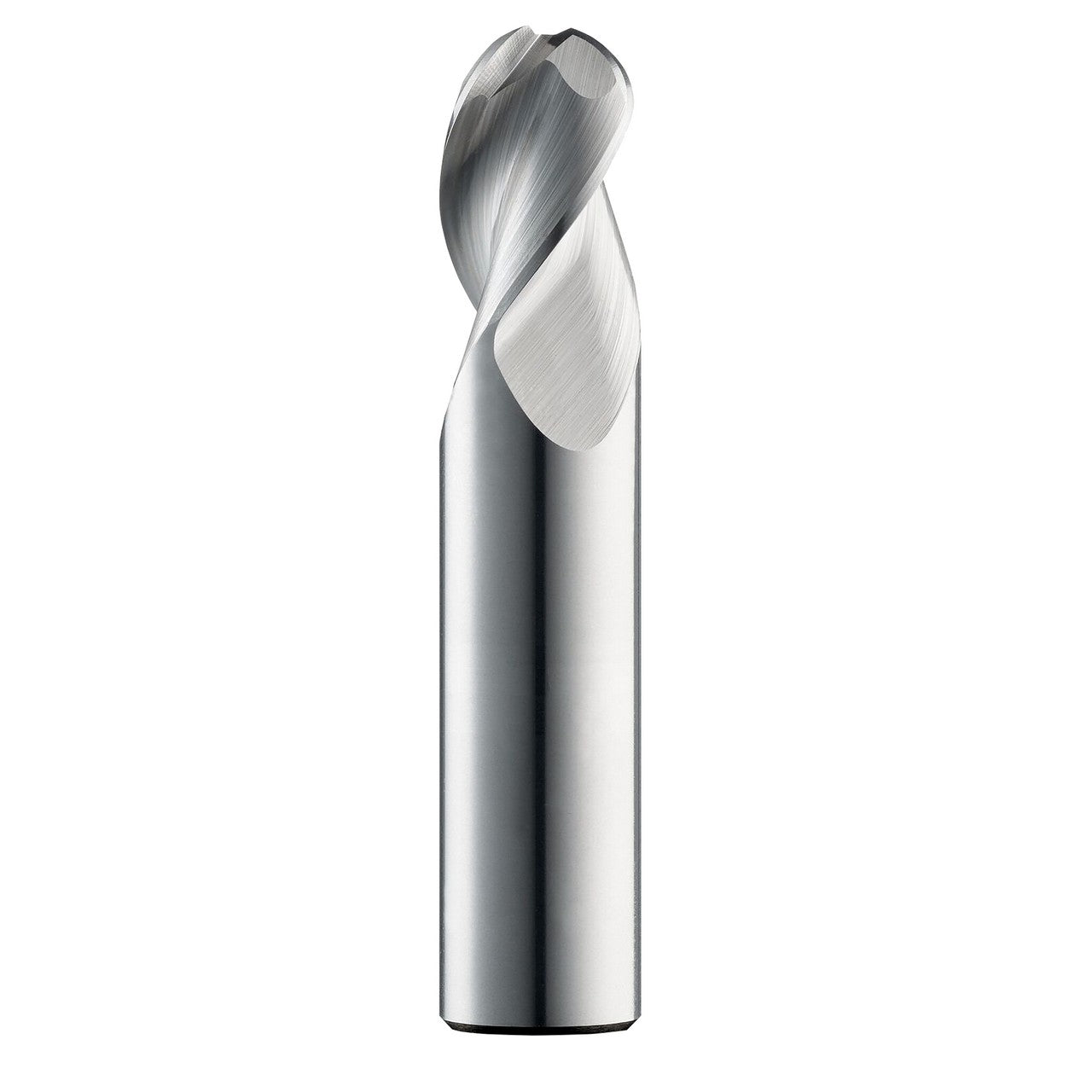

- Ball nose design ideal for finishing operations in complex workpieces
- Recommended for materials ≤ 150 BHN (≤ 7 HRC)
Product Specifications
| Cutting Diameter (mm) | 5.0mm |
| Shank Diameter (mm) | 6.0mm |
| Length of Cut (mm) | 7.5mm |
| Overall Length (mm) | 57.0mm |
| Shank Length (mm) | 49.5mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Helix Angle | 38 Degree |
| Coating | TiB2 |
| Number of Flutes | 3 |
