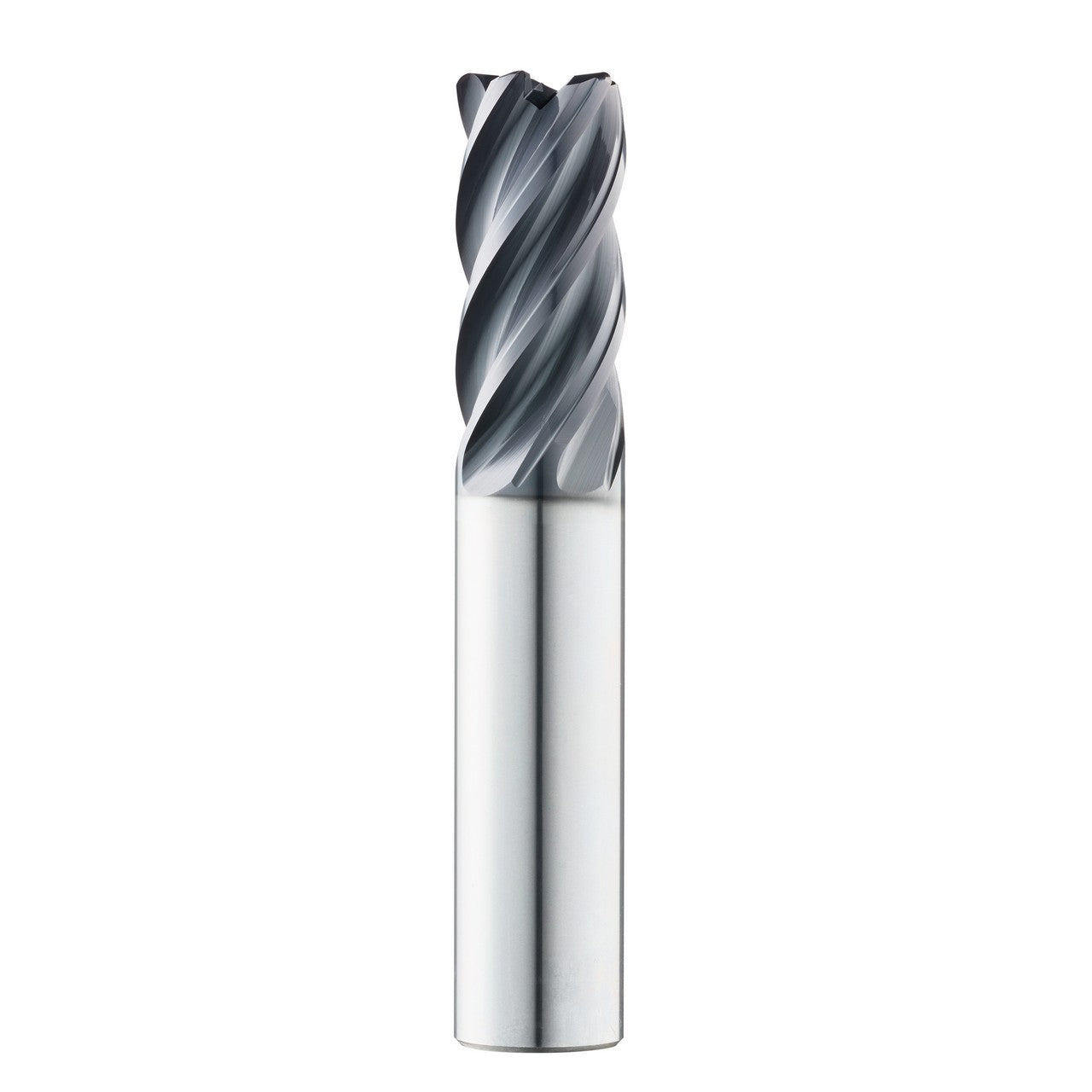

Features:
- An ideal balance of helix, indexing, flute depth, rake and relief
- Variable indexing for chatter supression and patented edge geometry for shearing and strength
- Chatter-free geometry allows deep cutting and high speed machining
- Central coolant hole delivers coolant effectively to the cutting zone enhancing chip removal when pocketing or slotting
- Excels at roughing, ramping, high speed machining and finishing in a variety of materials
- Enhanced corner geometry with tight tolerance corner radius
- Recommended for materials ≤ 45 HRc (≤ 420 Bhn)
Product Specifications
| Cutting Diameter (Inch) | 5/16" |
| Shank Diameter (Inch) | 5/16" |
| Length of Cut (Inch) | 7/16" |
| Overall Length (Inch) | 2-1/2" |
| Shank Length (Inch) | 2.0625" |
| Cut of Direction | Right Hand |
| Flute Type | Spiral |
| Corner Radius (Inch) | 0.015" |
| Helix Angle | 37 Degree |
| Coating | AlTiN |
| Number of Flutes | 5 |
