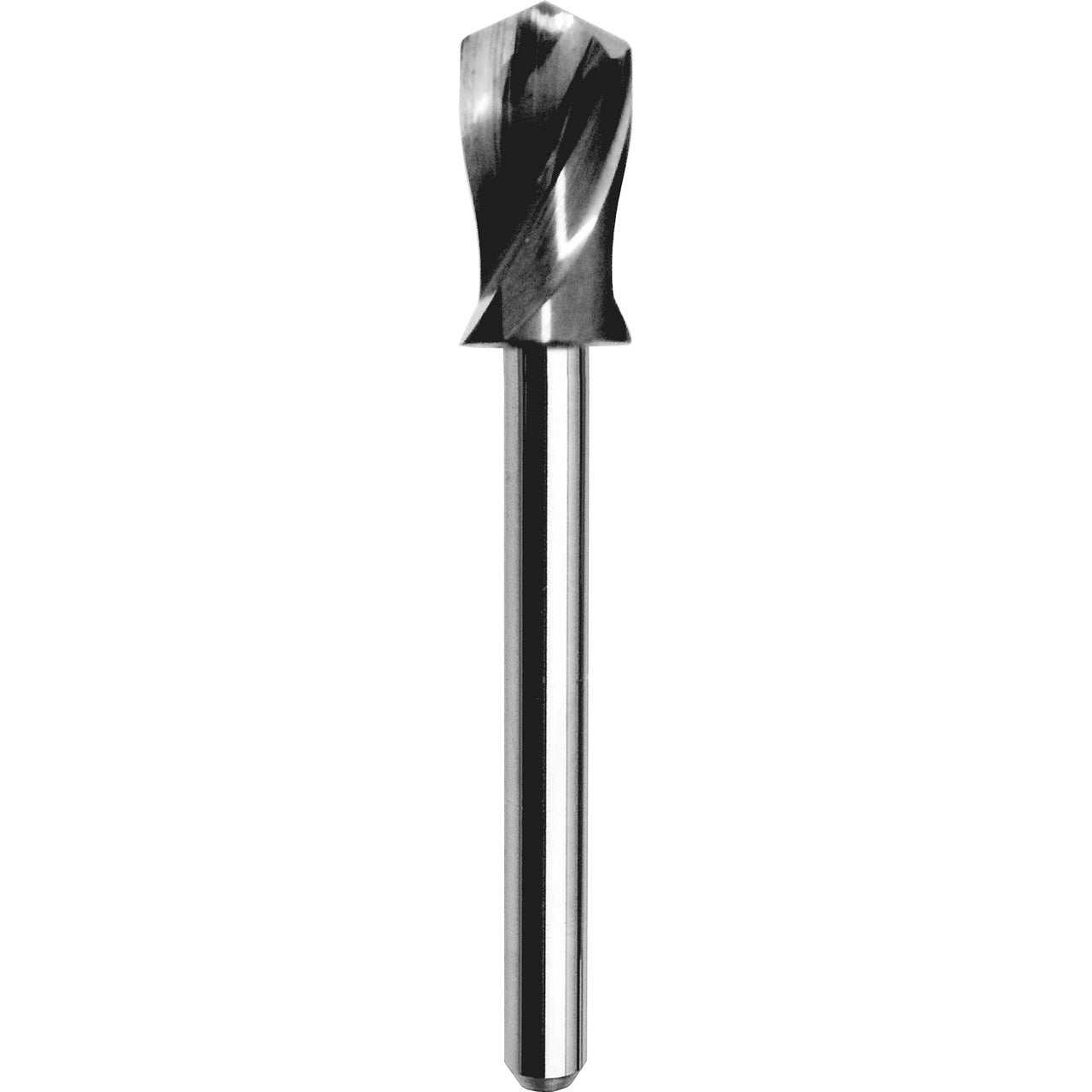

Features:
- Fractional diameters ranging from 0.1285"- 0.2610"
- Metric diameters ranging from 3,2 - 6,7mm
- All items on 1/8" common shank to suit global application demands
- 130 degree point angle
- Optimal end geometry ideal for targeted non-ferrous materials
- 4-faceted point geometry provides centering assistance upon entry
- Mirror surface finish is applied to allow for smooth chip flow
- Wide diameters offer ability to drill larger than average holes than is commonly possible in micro spindles
Product Specifications
| Cutting Diameter (mm) | 4.2mm |
| Shank Diameter (mm) | 3.2mm |
| Length of Cut (mm) | 12.7mm |
| Overall Length (mm) | 38.1mm |
| Shank Length (mm) | 25.4mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Cleared Length (mm) | 13 mm |
| Helix Angle | 30 Degree |
| Point Angle | 130 Degree |
| Coating | Uncoated |
| Number of Flutes | 2 |
