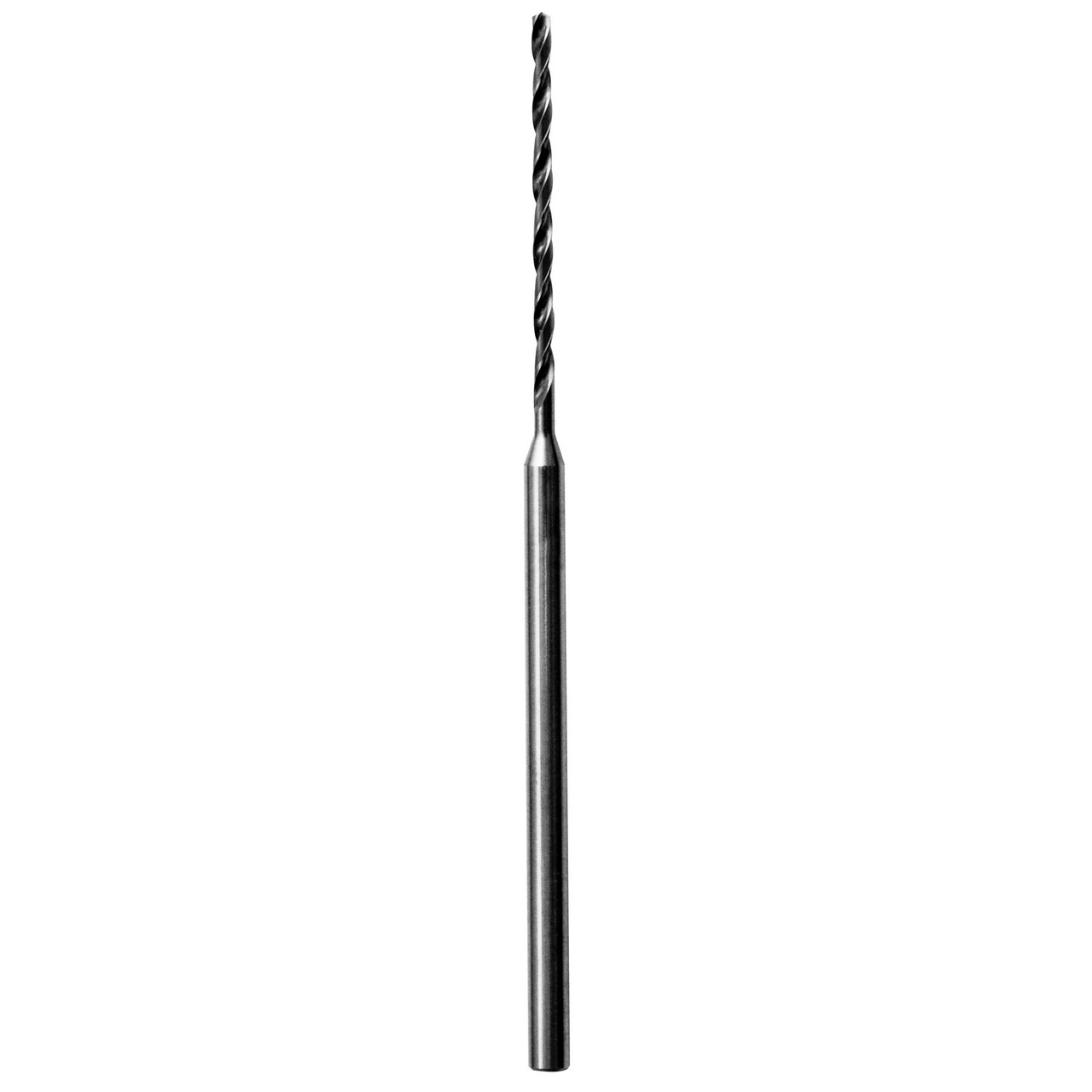

Features:
- Split point and double margin design provide superior hole finish and size control
- Coolant hole feature allows straight through drilling without a peck cycle
- Proprietary highperformance coating and mirror polished fluting increase tool life and productivity in moderateto-difficult workpiece materials
- Application specific sub-micron grain carbide designed specifically for micro-tool applications
- Manufactured in accordance with KSPT ISO certified quality procedures
Product Specifications
| Cutting Diameter (mm) | 2.3mm |
| Shank Diameter (mm) | 4.0mm |
| Length of Cut (mm) | 26.5mm |
| Overall Length (mm) | 64.0mm |
| Cut of Direction | RHC |
| Flute Type | Spiral |
| Cleared Length (mm) | 18.4 mm |
| Helix Angle | 28 Degree |
| Point Angle | 140 Degree |
| Coating | TCR |
| Number of Flutes | 2 |
