Helical Solutions

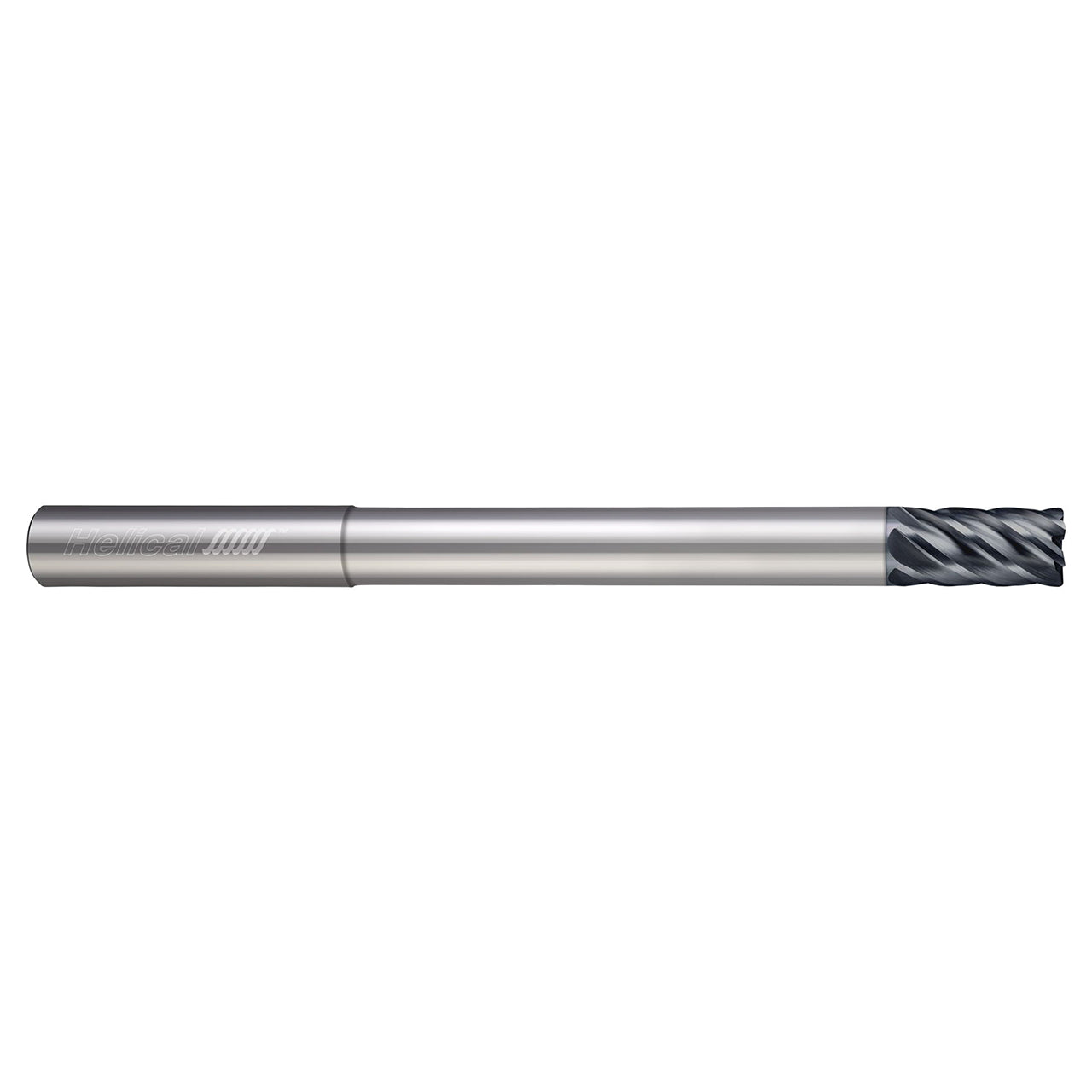

Helical Solutions 88628 | HEV-RN-6 0.6250" Diameter x 0.6250" Shank x 4.0000" OAL x 0.0300" Radius 6 Flute Aplus Coated Corner Radius End Mill

Helical Solutions 88628 | HEV-RN-6 0.6250" Diameter x 0.6250" Shank x 4.0000" OAL x 0.0300" Radius 6 Flute Aplus Coated Corner Radius End Mill

SKU: 25281616

Precio habitual $211.20 USD
Precio habitual $211.20 USD Precio de oferta $211.20 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 104 Grams

Ver todos los detalles

Product Specifications
# Manufacturer Number 88628
Cutter Diameter (Inch) 5/8"
Cutter Diameter (Decimal Inch) 0.6250"
Neck Diameter (Inch) 19/32"
Neck Diameter (Decimal Inch) 0.5930"
Shank Diameter (Inch) 5/8"
Shank Diameter (Decimal Inch) 0.6250"
Overall Length (Inch) 4"
Overall Length (Decimal Inch) 4.0000"
Length of Cut (Inch) 3/4"
Length of Cut (Decimal Inch) 0.7500"
Corner Radius (Decimal Inch) 0.0300"
Number of Flutes 6
Center Cutting (Yes/No) Yes
Coating Aplus
