Helical Solutions

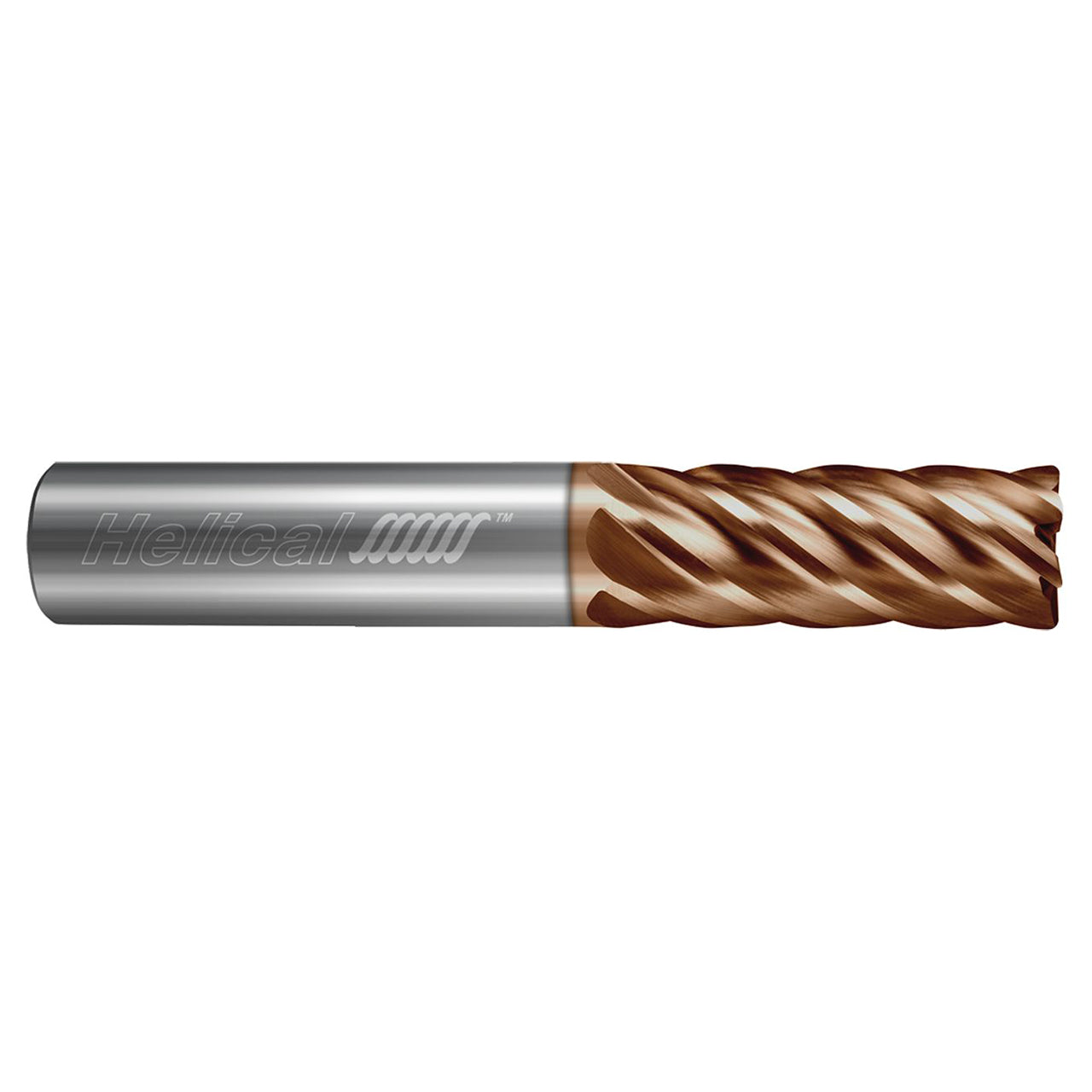

Helical Solutions 88399 | HEV-6 0.1875" Diameter x 0.1875" Shank x 2.0000" OAL x 0.0300" Radius 6 Flute Tplus Coated Corner Radius End Mill

Helical Solutions 88399 | HEV-6 0.1875" Diameter x 0.1875" Shank x 2.0000" OAL x 0.0300" Radius 6 Flute Tplus Coated Corner Radius End Mill

SKU: 25281395

Precio habitual $40.90 USD
Precio habitual $40.90 USD Precio de oferta $40.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 104 Grams

Ver todos los detalles

Product Specifications
# Manufacturer Number 88399
Cutter Diameter (Inch) 3/16"
Cutter Diameter (Decimal Inch) 0.1875"
Shank Diameter (Inch) 3/16"
Shank Diameter (Decimal Inch) 0.1875"
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.0000"
Length of Cut (Inch) 7/16"
Length of Cut (Decimal Inch) 0.4375"
Corner Radius (Decimal Inch) 0.0300"
Number of Flutes 6
Center Cutting (Yes/No) Yes
Coating Tplus
