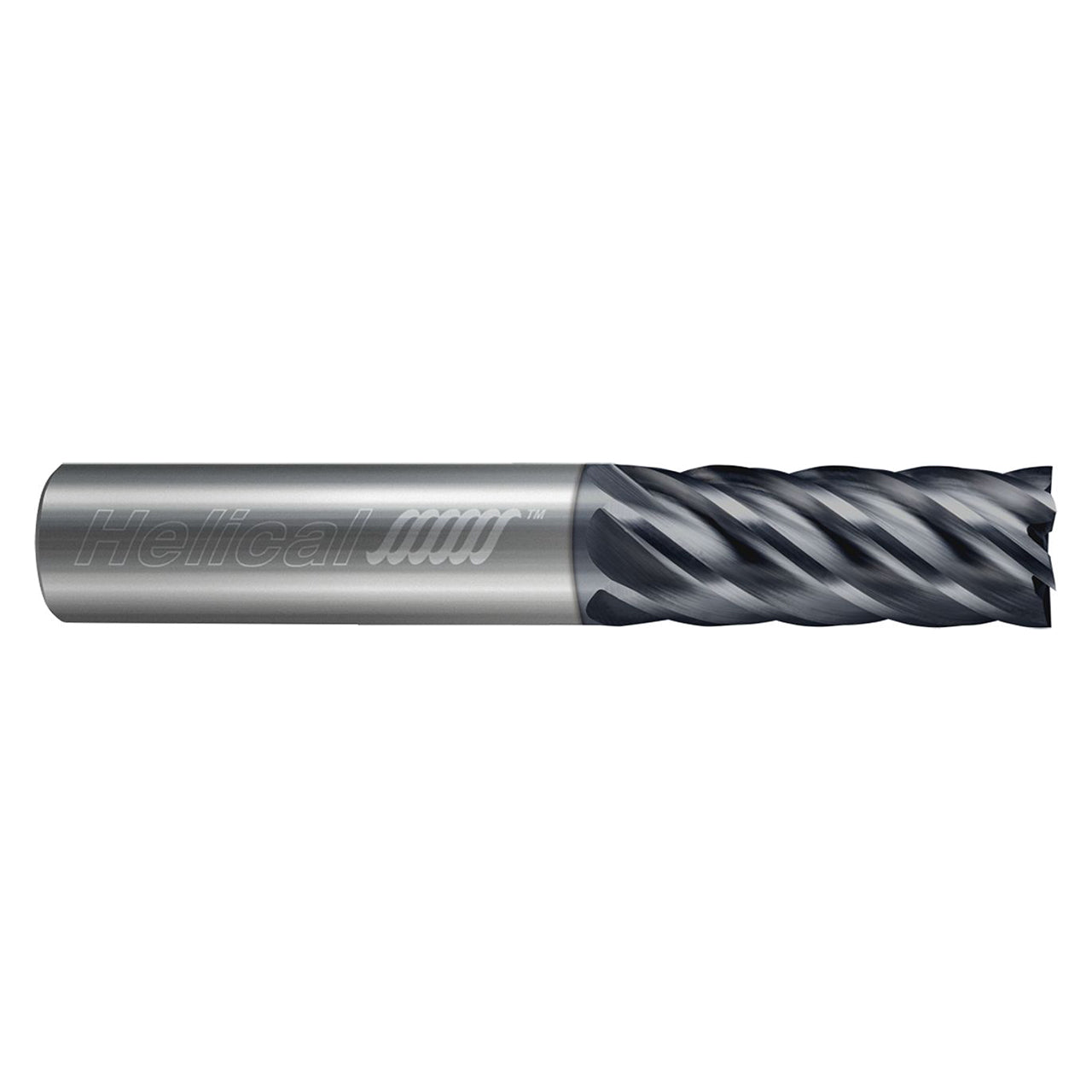

Utilize the HVTI-6, Helical Solutions' product line of tooling optimized for Titanium 6Al4V and other titanium alloys, to achieve exceptional performance in High Efficiency Milling (HEM).
Features:- Specially engineered for optimal performance in High Efficiency Milling (HEM) of Titanium 6Al4V and other titanium alloys
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Not for use in traditional slotting and roughing toolpaths
- Center cutting
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Tool Number | 87262 |
| Cutter Diameter (Inch) | 0.7500" |
| Length of Cut (Inch) | 1.2500" |
| Overall Length (Inch) | 4.0000" |
| Corner Radius (Inch) | 0.0900" |
| No of Flutes | 6 |
| LOC Multiple | 1.6x |
| Shank Diameter (Inch) | 0.7500" |
| Coating | Aplus |
