Helical Solutions

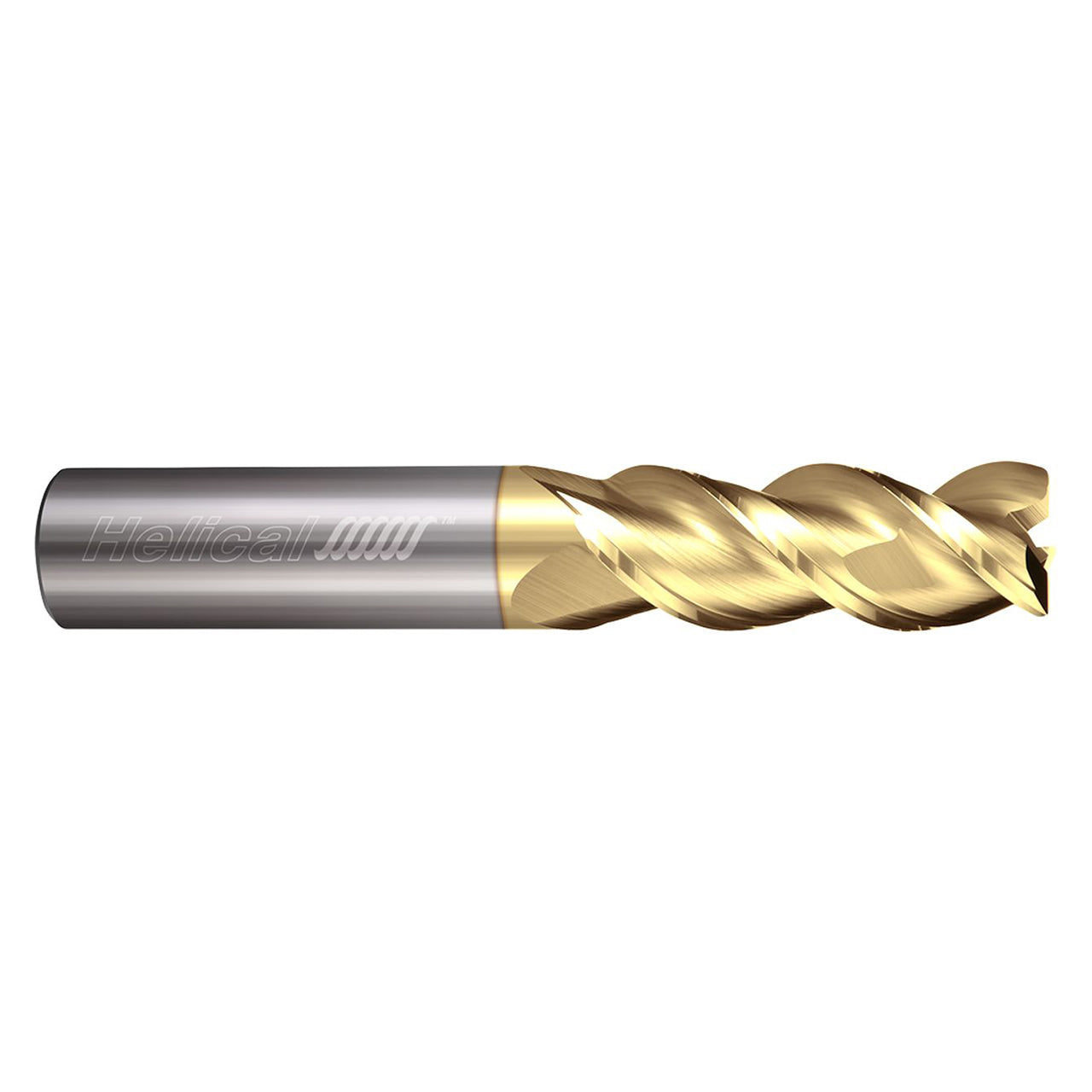

Helical Solutions 87079 | H45AL-ML-30187-R.010 0.1875" Diameter x 0.1875" Shank x 1.0000" LOC x 2.5000" OAL x 0.0100" Radius 3 Flute Zplus Coated Carbide Corner Radius End Mill

Helical Solutions 87079 | H45AL-ML-30187-R.010 0.1875" Diameter x 0.1875" Shank x 1.0000" LOC x 2.5000" OAL x 0.0100" Radius 3 Flute Zplus Coated Carbide Corner Radius End Mill

SKU: 25215490

$50.90 USD
$50.90 USD $50.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

A reduced neck and unique design that requires less torque and horsepower make this durable tool the perfect choice for roughing in aluminum, especially in long reach and deep cavity applications where chip evacuation is a common challenge.

Features:
  • Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
  • Engineered with high helix and chipbreaker geometry for optimal chip evacuation and a semi-finished surface
  • Unique tool design requires less torque and horsepower
  • Reduced neck provides maximum strength in long reach and deep pocketing applications
  • Excellent performance in High Efficiency Milling (HEM)
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Zplus coating offers higher hardness and added lubricity for maximum performance
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Tool Number 87079
Cutter Diameter (Inch) 0.1875"
Length of Cut (Inch) 1.0000"
Overall Length (Inch) 2.5000"
Corner Radius (Inch) 0.0100"
No of Flutes 3
LOC Multiple 5.3x
Shank Diameter (Inch) 0.1875"
Coating Zplus
