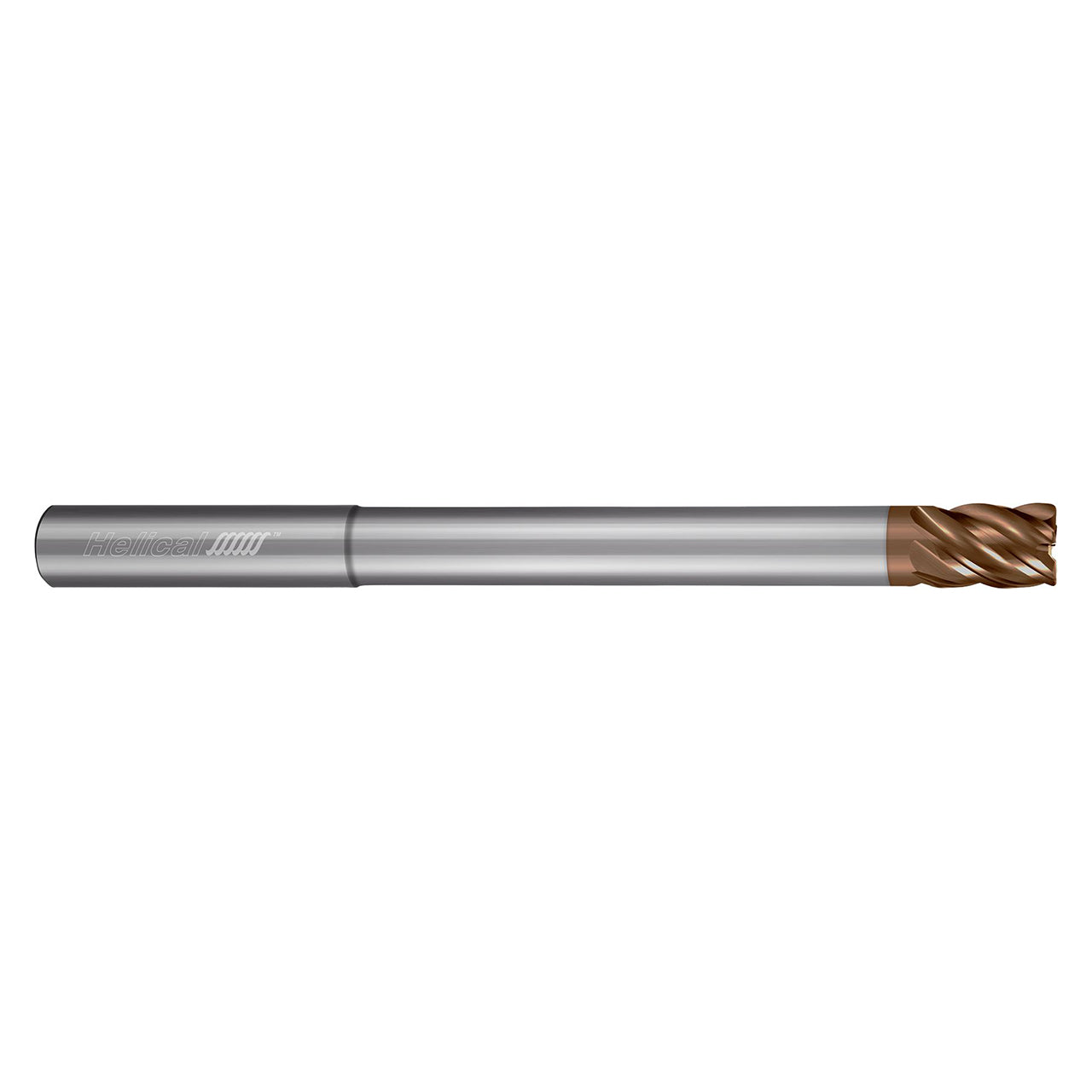

Equipped with the strength needed for long reach and deep pocketing applications in stainless steels, these solid carbide 4 flute end mills feature a corner radius end profile, reduced neck geometry, and eccentric relief design.
Features:- Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
- Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
- Engineered with eccentric relief for maximum edge strength in both roughing and finishing applications
- Variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Center cutting
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Tool Number | 86793 |
| Cutter Diameter (Inch) | 0.7500" |
| Neck Diameter (Inch) | 0.7120" |
| Length of Cut (Inch) | 1.0000" |
| Overall Reach (Inch) | 2.0000" |
| Overall Length (Inch) | 4.0000" |
| Corner Radius (Inch) | 0.1200" |
| No of Flutes | 5 |
| LOC Multiple | 1.3x |
| Shank Diameter (Inch) | 0.7500" |
| Shank Length (Inch) | 2.0000" |
| Coating | Tplus |
