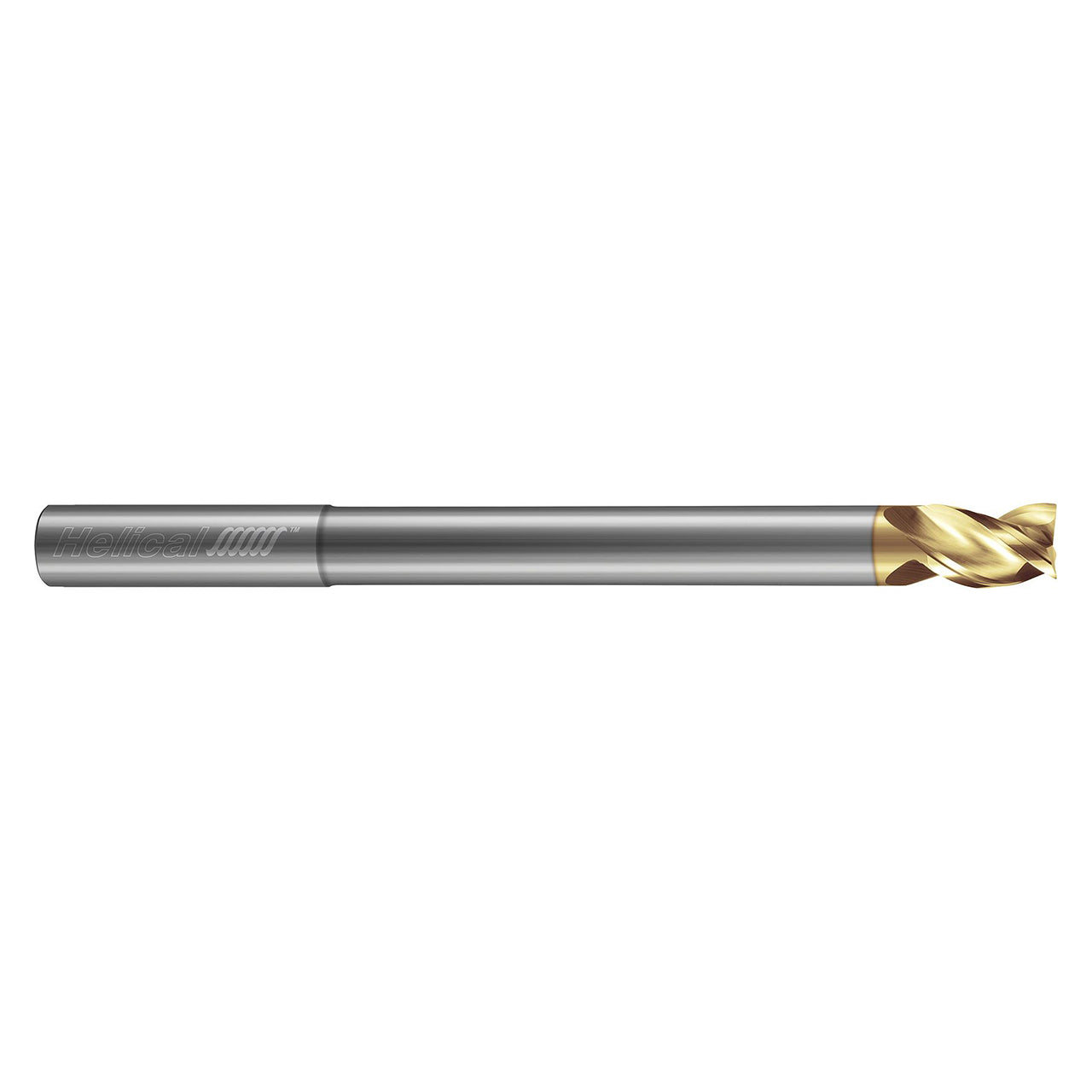

The H40ALV-3's end geometry contains a wiper flat, designed to swiftly remove scallop marks on the floor of a part to leave a superior finish in aluminum and non-ferrous alloys. This feature is included on all square profiles and where the tool's corner radius does not exceed 20 percent of the cutter diameter.
Features:- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- Designed with a specialized combination of features for excellent performance in roughing and finishing applications
- Unique "3 teeth-to-center" end geometry for ramping applications
- Wiper flat design leaves superior floor finish
- Excellent performance in High Efficiency Milling (HEM)
- Center cutting
- h6 shank tolerance for high precision tool holders
- Uncoated tool offers an excellent option for aluminum finishing applications
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Tool Number | 86501 |
| Cutter Diameter (Inch) | 0.3125" |
| Neck Diameter (Inch) | 0.2960" |
| Length of Cut (Inch) | 0.4375" |
| Overall Reach (Inch) | 1.1250" |
| Overall Length (Inch) | 4.0000" |
| No of Flutes | 3 |
| LOC Multiple | 1.4x |
| Shank Diameter (Inch) | 0.3125" |
| Shank Length (Inch) | 2.8750" |
| Coating | Zplus |
