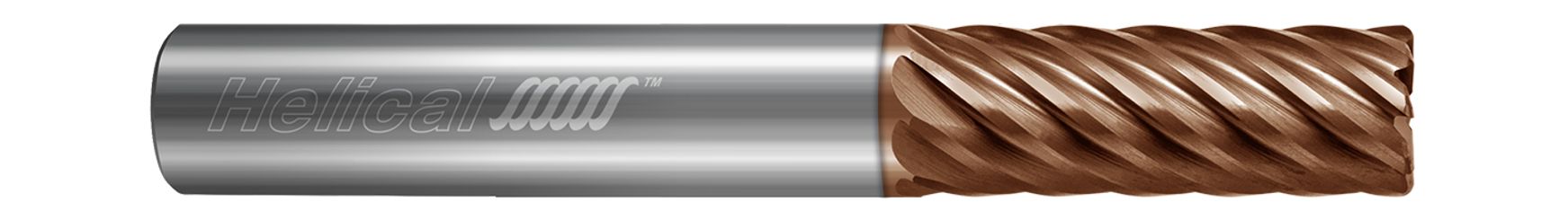

This 8 flute, Corner Radius End Mill is specially enginered for optimal performace in High Efficiency Milling (HEM) of Inconel 718 and other nickel-based superalloys, and features a variable pitch design for improved part finish.
- Specially engineered for optimal performance in High Efficiency Milling (HEM) of Inconel 718 and other nickel-based superalloys
- 8 flute variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
- Not for use in traditional slotting and roughing toolpaths
- End cutting geometry (non-center cutting)
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.7500" (3/4) |
| Length of Cut (Inch) | 1.6250" (1-5/8) |
| Overall Length (Inch) | 4" |
| Corner Radius (Inch) | 0.0300" |
| No of Flutes | 8 |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Finish/Coating | TPLUS |
