Helical Solutions

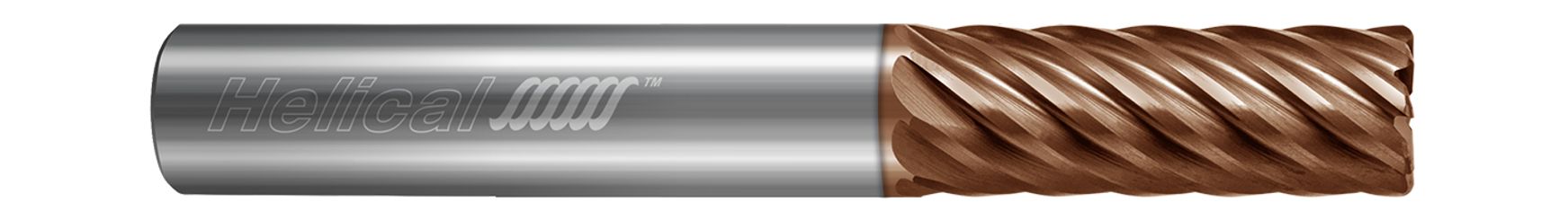

Helical Solutions 86255 | HVNI-040-80500-R.120 1/2" Diameter x 1/2" Shank x 2" LOC x 4" OAL x 0.1200" Radius 8 Flute Tplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 86255 | HVNI-040-80500-R.120 1/2" Diameter x 1/2" Shank x 2" LOC x 4" OAL x 0.1200" Radius 8 Flute Tplus Coated Solid Carbide Corner Radius End Mill

SKU: 25188462

$140.30 USD
$140.30 USD $140.30 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

This 8 flute, Corner Radius End Mill is specially enginered for optimal performace in High Efficiency Milling (HEM) of Inconel 718 and other nickel-based superalloys, and features a variable pitch design for improved part finish.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of Inconel 718 and other nickel-based superalloys
  • 8 flute variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
  • Not for use in traditional slotting and roughing toolpaths
  • End cutting geometry (non-center cutting)
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.5000" (1/2)
Length of Cut (Inch) 2"
Overall Length (Inch) 4"
Corner Radius (Inch) 0.1200"
No of Flutes 8
Shank Diameter (Inch) 0.5000" (1/2)
Finish/Coating TPLUS
