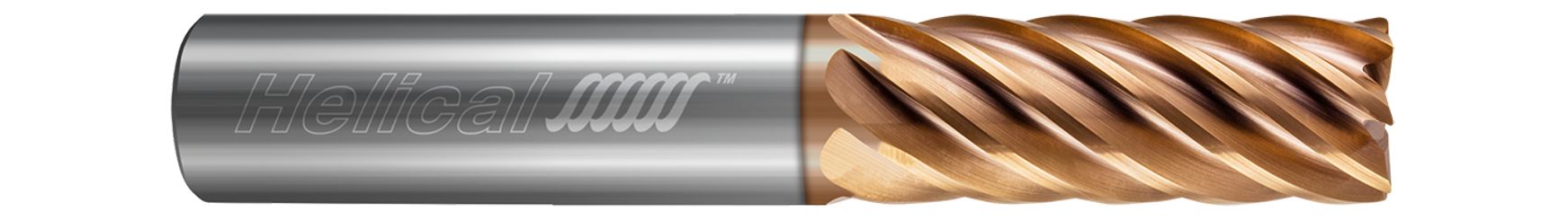

Helical Solutions 86057 | HEV-M-70625-R.030 5/8" Diameter x 5/8" Shank x 2-1/8" LOC x 4" OAL x 0.0300" Radius 7 Flute Tplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 86057 | HEV-M-70625-R.030 5/8" Diameter x 5/8" Shank x 2-1/8" LOC x 4" OAL x 0.0300" Radius 7 Flute Tplus Coated Solid Carbide Corner Radius End Mill

SKU: 25187996

$224.60 USD
$224.60 USD $224.60 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

7 flute , corner radius profile end mill with a variable pitch design, engineered for excellent performance in High Efficiency Milling (HEM) of stainless steels, high temp alloys, and hardened steels up to 65 Rc.

  • Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
  • Well-suited for increased wear resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron
  • Engineered for excellent performance in High Efficiency Milling (HEM)
  • 7 flute variable pitch design for reduced harmonics and increased feed rates
  • End cutting geometry (non-center cutting)
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.6250" (5/8)
Length of Cut (Inch) 2.1250" (2-1/8)
Overall Length (Inch) 4"
Corner Radius (Inch) 0.0300"
No of Flutes 7
Shank Diameter (Inch) 0.6250" (5/8)
Finish/Coating TPLUS
