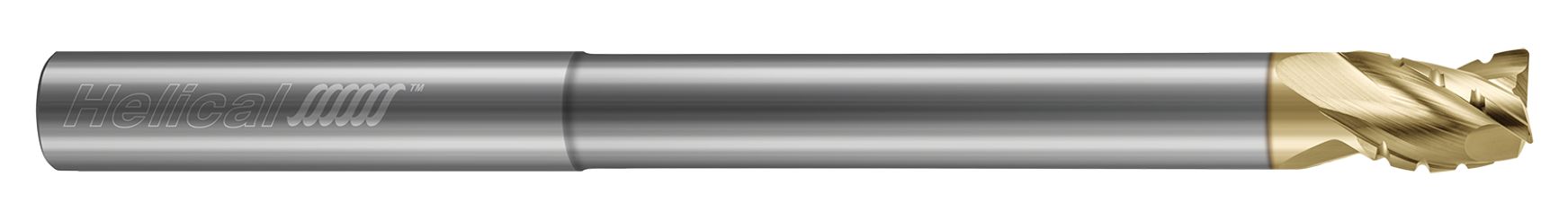

Helical's H35ALV-C-RN-3 product offering, a 3 flute, corner radius end mill, is engineered with optimized variable pitch and chipbreaker geometries for reduced harmonics and elevated material removal rates (MRR).
- Engineered with optimized variable pitch and chipbreaker geometry for reduced harmonics and elevated material removal rates
- Unique tool design requires less torque and horsepower
- Excellent performance in High Efficiency Milling (HEM)
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Unique "3 teeth-to-center" end geometry for ramping applications
- h6 shank tolerance for high precision tool holders
- Zplus coating for maximum performance in aluminum and non-ferrous alloys
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1250" (1/8) |
| Neck Diameter (Inch) | 0.1180" (3 mm) |
| Length of Cut (Inch) | 0.1563" (5/32) |
| Overall Reach (Inch) | 0.5000" (1/2) |
| Overall Length (Inch) | 3" |
| Corner Radius (Inch) | 0.0100" |
| No of Flutes | 3 |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Finish/Coating | UN |
| Center Cutting (Yes/No) | Yes |
| Chip Breaker (Yes/No) | Yes |
