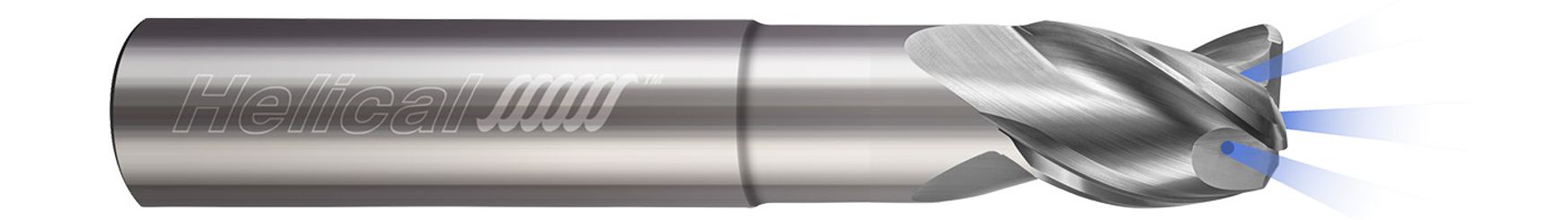

Achieve precision balance in high velocity aluminum machining operations (up to 33,000 rpm) with the HMGC-RN-3, designed for high performance in Makino MAG machining centers capable of elevated RPMs and feed rates.
- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- Designed for high performance in Makino MAG machining centers capable of elevated RPMs and feed rates
- Precision balanced for high velocity machining in aluminum (up to 33,000 RPM)
- Shank length designed for optimal use in high performance tool holders, providing reduced excess stickout and increased rigidity
- Excellent performance in High Efficiency Milling (HEM)
- Radial coolant holes for reduced heat, enhanced chip evacuation, and increased MRR
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Unique "3 teeth-to-center" end geometry for ramping applications
- h6 shank tolerance for high precision tool holders
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 1" |
| Neck Diameter (Inch) | 0.9500" |
| Length of Cut (Inch) | 1" |
| Overall Reach (Inch) | 2" |
| Overall Length (Inch) | 4.2500" (4-1/4) |
| Corner Radius (Inch) | 0.1200" |
| No of Flutes | 3 |
| Shank Diameter (Inch) | 1" |
| Finish/Coating | Uncoated |
| Center Cutting (Yes/No) | Yes |
