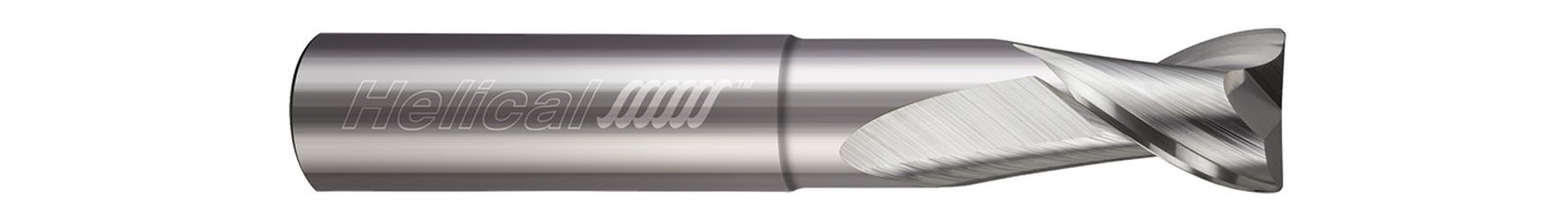

The reduced neck design of the HMGC-RN-2, our precision balanced end mill designed for high velocity machining in aluminum (up to 33,000 rpm), provides maximum strength in long reach and deep pocketing applications.
- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- Designed for high performance in Makino MAG machining centers capable of elevated RPMs and feed rates
- Precision balanced for high velocity machining in aluminum (up to 33,000 RPM)
- Shank length designed for optimal use in high performance tool holders, providing reduced excess stickout and increased rigidity
- Excellent performance in High Efficiency Milling (HEM)
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- Center cutting
- h6 shank tolerance for high precision tool holders
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Neck Diameter (Inch) | 0.4750" |
| Length of Cut (Inch) | 0.5000" (1/2) |
| Overall Reach (Inch) | 2.5000" (2-1/2) |
| Overall Length (Inch) | 4" |
| Corner Radius (Inch) | 0.1250" (1/8) |
| No of Flutes | 2 |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Finish/Coating | Uncoated |
| Center Cutting (Yes/No) | Yes |
