Helical Solutions

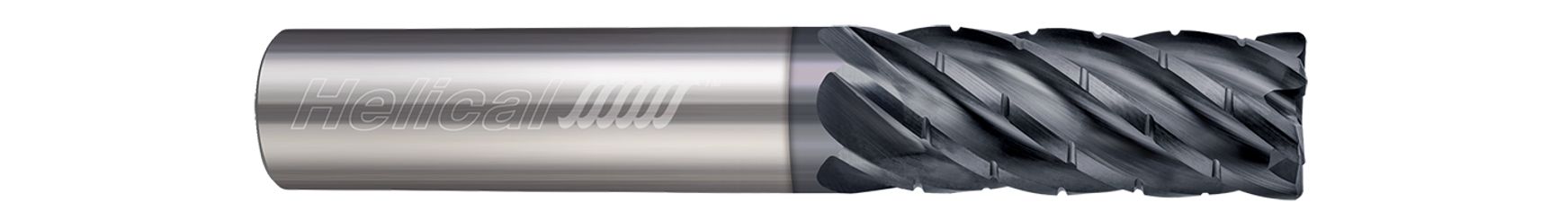

Helical Solutions 84528 | HVTI-C-040-60375-R.010 3/8" Diameter x 3/8" Shank x 1-1/2" LOC x 3-1/2" OAL x 0.0100" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 84528 | HVTI-C-040-60375-R.010 3/8" Diameter x 3/8" Shank x 1-1/2" LOC x 3-1/2" OAL x 0.0100" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

SKU: 25188288

$83.70 USD
$83.70 USD $83.70 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

The 6 flute, Corner Radius Chipbreaker Rougher, engineered for High Efficiency Milling (HEM) in titanium, features variable pitch and chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of Titanium 6Al4V and other titanium alloys
  • 6 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure
  • Not for use in traditional slotting and roughing toolpaths
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.3750" (3/8)
Length of Cut (Inch) 1.5000" (1-1/2)
Overall Length (Inch) 3.5000" (3-1/2)
Corner Radius (Inch) 0.0100"
No of Flutes 6
Shank Diameter (Inch) 0.3750" (3/8)
Finish/Coating APLUS
Center Cutting (Yes/No) Yes
Chip Breaker (Yes/No) Yes
