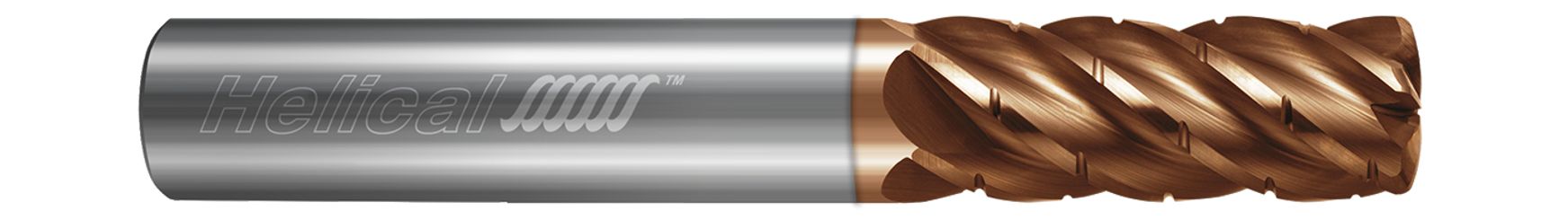

Helical Solutions 84489 | HEVF-C-015-50250 1/4" Diameter x 1/4" Shank x 3/8" LOC x 2" OAL x 5 Flute Tplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 84489 | HEVF-C-015-50250 1/4" Diameter x 1/4" Shank x 3/8" LOC x 2" OAL x 5 Flute Tplus Coated Solid Carbide Corner Radius End Mill

SKU: 25188086

$45.20 USD
$45.20 USD $45.20 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

This offering of High Feed End Mills, used for both high feed and High Efficiency Milling (HEM) applications, features tooling with offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, cast iron, titanium, and titanium alloys
  • Combination of specialized end profile and OD geometry for both high feed and HEM applications
  • 5 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure
  • End cutting geometry (non-center cutting)
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.2500" (1/4)
Length of Cut (Inch) 0.3750" (3/8)
Overall Length (Inch) 2"
Theoretical Radius (Inch) 0.0314"
No of Flutes 5
Shank Diameter (Inch) 0.2500" (1/4)
Finish/Coating TPLUS
Chip Breaker (Yes/No) Yes
