Helical Solutions

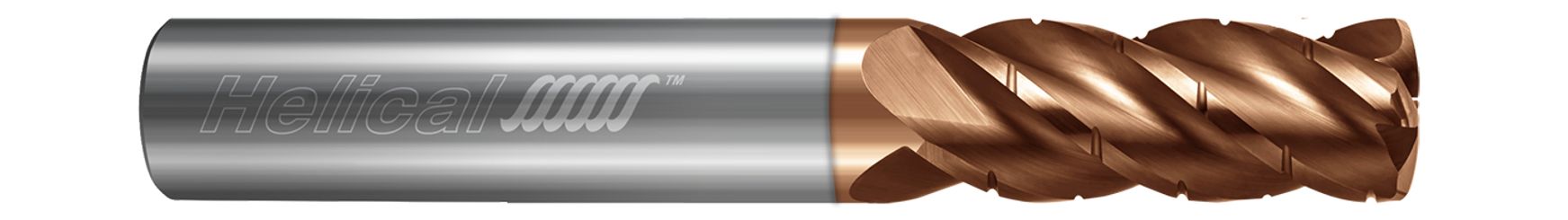

Helical Solutions 84474 | HEVF-C-015-40250 1/4" Diameter x 1/4" Shank x 3/8" LOC x 2" OAL x 4 Flute Tplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 84474 | HEVF-C-015-40250 1/4" Diameter x 1/4" Shank x 3/8" LOC x 2" OAL x 4 Flute Tplus Coated Solid Carbide Corner Radius End Mill

SKU: 25188081

$45.40 USD
$45.40 USD $45.40 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 23 Grams

Ver todos los detalles

Achieve outstanding performance in a wide range of ferrous materials with Helical's 4 Flute Chipbreaker Rougher High Feed End Mills, engineered with a combination of a specialized end profile and OD geometry for both high feed and HEM applications.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, cast iron, titanium, and titanium alloys
  • Combination of specialized end profile and OD geometry for both high feed and HEM applications
  • 4 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure
  • End cutting geometry (non-center cutting)
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.2500" (1/4)
Length of Cut (Inch) 0.3750" (3/8)
Overall Length (Inch) 2"
Theoretical Radius (Inch) 0.0314"
No of Flutes 4
Shank Diameter (Inch) 0.2500" (1/4)
Finish/Coating TPLUS
Chip Breaker (Yes/No) Yes
