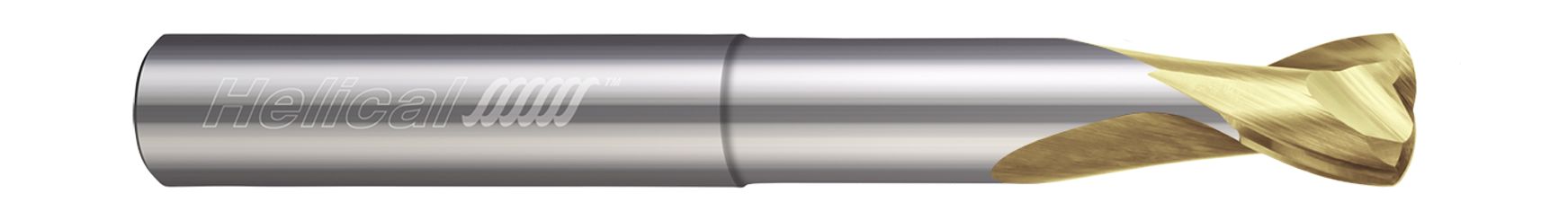

The specially engineered end profile of these High Feed End Mills for Aluminum and Non-Ferrous Materials reduces cutting forces, while its reduced neck geometry provides maximum strength in long reach and deep pocketing applications.
- Designed for outstanding performance and maximum feed rates in aluminum and non-ferrous materials
- Specifically engineered end profile for optimal tool engagement and reduced cutting forces
- Reduced neck provides maximum strength in long reach and deep pocketing applications
- End cutting geometry (non-center cutting)
- h6 shank tolerance for high precision tool holders
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1250" (1/8) |
| Neck Diameter (Inch) | 0.1180" (3 mm) |
| Length of Cut (Inch) | 0.1250" (1/8) |
| Overall Reach (Inch) | 1" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Theoretical Radius (Inch) | 0.0213" |
| No of Flutes | 2 |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Finish/Coating | ZPLUS |
