Helical Solutions

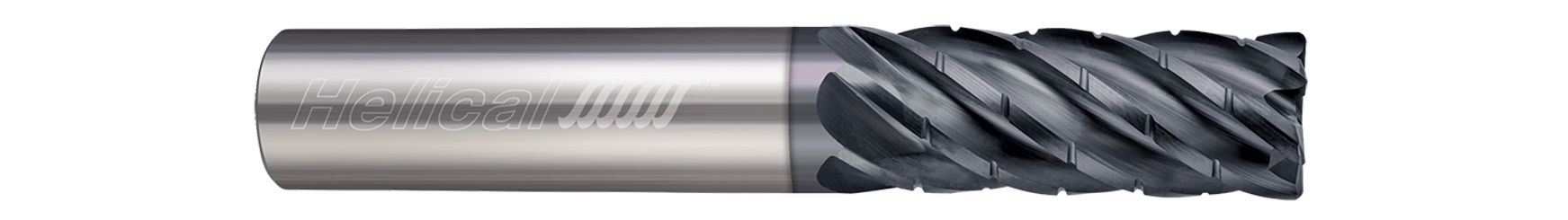

Helical Solutions 84376 | HEV-C-R-60125-R.010 1/8" Diameter x 1/8" Shank x 1/2" LOC x 2-1/2" OAL x 0.0100" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 84376 | HEV-C-R-60125-R.010 1/8" Diameter x 1/8" Shank x 1/2" LOC x 2-1/2" OAL x 0.0100" Radius 6 Flute Aplus Coated Solid Carbide Corner Radius End Mill

SKU: 25188268

$34.90 USD
$34.90 USD $34.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

This 6 flute, corner radius end mill for steels is engineered to excel in High Efficiency Milling (HEM), and features offset chipbreaker geometry for optimal chip evacuation, as well as reduced harmonics and tool pressure.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, cast iron, titanium, and titanium alloys.
  • Engineered for excellent performance in High Efficiency Milling (HEM)
  • 6 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, reduced harmonics, and reduced tool pressure
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.1250" (1/8)
Length of Cut (Inch) 0.5000" (1/2)
Overall Length (Inch) 2.5000" (2-1/2)
Corner Radius (Inch) 0.0100"
No of Flutes 6
Shank Diameter (Inch) 0.1250" (1/8)
Finish/Coating APLUS
Center Cutting (Yes/No) Yes
Chip Breaker (Yes/No) Yes
