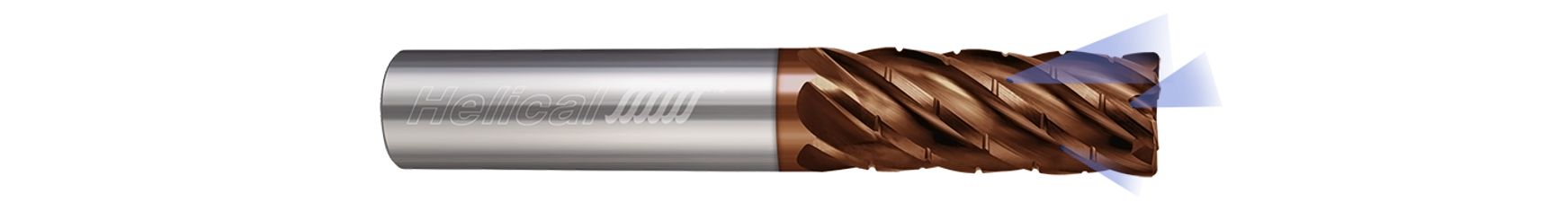

This Helical Solutions offering of 6 flute, corner radius, coolant through, Variable Pitch End Mills features CNC tooling with chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure.
- Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
- Engineered for excellent performance in High Efficiency Milling (HEM)
- 6 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure
- Radial coolant holes for reduced heat, enhanced chip evacuation, and increased material removal rates
- Center cutting
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.5000" (1/2) |
| Length of Cut (Inch) | 1" |
| Overall Length (Inch) | 3" |
| Corner Radius (Inch) | 0.0300" |
| No of Flutes | 6 |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Finish/Coating | TPLUS |
| Center Cutting (Yes/No) | Yes |
| Chip Breaker (Yes/No) | Yes |
| Coolant Through (Yes/No) | Yes |
