Helical Solutions

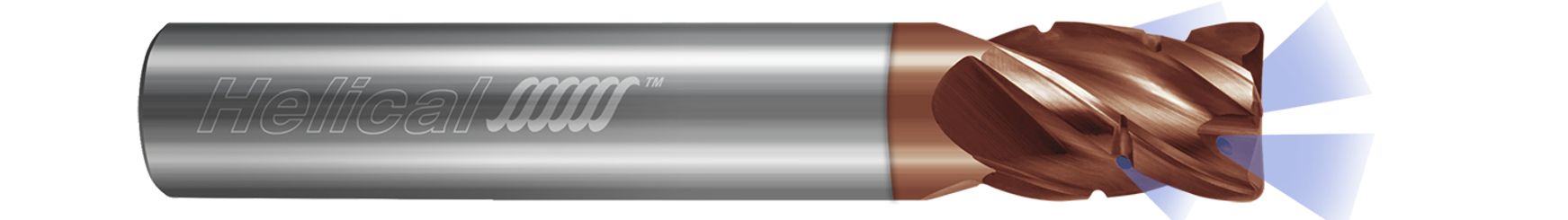

Helical Solutions 84343 | HEVC-C-030-40750-R.030 3/4" Diameter x 3/4" Shank x 2-1/4" LOC x 5" OAL x 0.0300" Radius 4 Flute Tplus Coated Solid Carbide Corner Radius End Mill

Helical Solutions 84343 | HEVC-C-030-40750-R.030 3/4" Diameter x 3/4" Shank x 2-1/4" LOC x 5" OAL x 0.0300" Radius 4 Flute Tplus Coated Solid Carbide Corner Radius End Mill

SKU: 25188576

$393.90 USD
$393.90 USD $393.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

Achieve optimal performance in stainless steels, high temp alloys, and hardened steels up to 65 Rc with Helical's corner radius, Variable Pitch Chipbreaker Rougher, designed to provide optimal chip evacuation, minimized harmonics, and reduced tool pressure.

  • Offers proven performance and extended tool life in stainless steels, high temp alloys, and hardened steels up to 65 Rc
  • 4 flute variable pitch and offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure
  • Radial coolant holes for reduced heat, enhanced chip evacuation, and increased material removal rates
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 0.7500" (3/4)
Length of Cut (Inch) 2.2500" (2-1/4)
Overall Length (Inch) 5"
Corner Radius (Inch) 0.0300"
No of Flutes 4
Shank Diameter (Inch) 0.7500" (3/4)
Finish/Coating TPLUS
Center Cutting (Yes/No) Yes
Chip Breaker (Yes/No) Yes
Coolant Through (Yes/No) Yes
