Helical Solutions

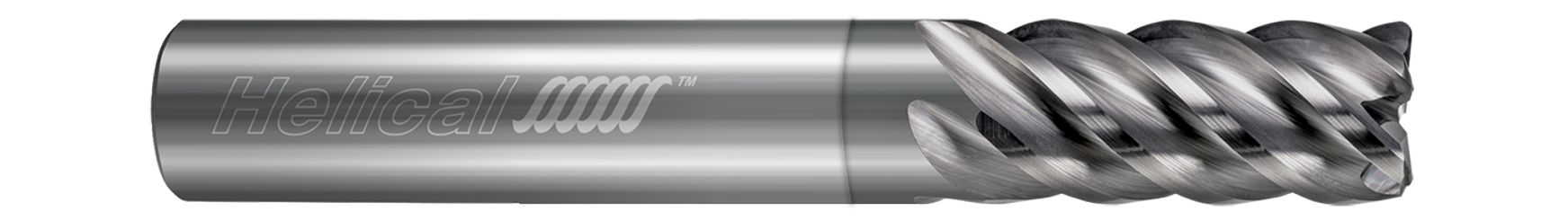

Helical Solutions 84141 | HVAL-020-50375-R.010 3/8" Diameter x 3/8" Shank x 3/4" LOC x 2-1/2" OAL x 0.0100" Radius 5 Flute Uncoated Solid Carbide Corner Radius End Mill

Helical Solutions 84141 | HVAL-020-50375-R.010 3/8" Diameter x 3/8" Shank x 3/4" LOC x 2-1/2" OAL x 0.0100" Radius 5 Flute Uncoated Solid Carbide Corner Radius End Mill

SKU: 25188655

$65.40 USD
$65.40 USD $65.40 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

Helical's fully stocked 5 Flute Corner Radius End Mill with a variable pitch design is specially engineered for optimal performance in High Efficiency Milling (HEM) of aerospace aluminum alloys and other non-ferrous alloys.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of aerospace aluminum alloys with excellent performance in other non-ferrous alloys
  • Excellent tool life and maximum material removal rates proven through extensive testing
  • Engineered with variable pitch for minimized harmonics and reduced tool pressure
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
  • Solid carbide

Product Specifications
Cutter Diameter (Inch) 0.3750" (3/8)
Length of Cut (Inch) 0.7500" (3/4)
Overall Length (Inch) 2.5000" (2-1/2)
Corner Radius (Inch) 0.0100"
No of Flutes 5
Shank Diameter (Inch) 0.3750" (3/8)
Finish/Coating Uncoated
Center Cutting (Yes/No) Yes
