Helical Solutions

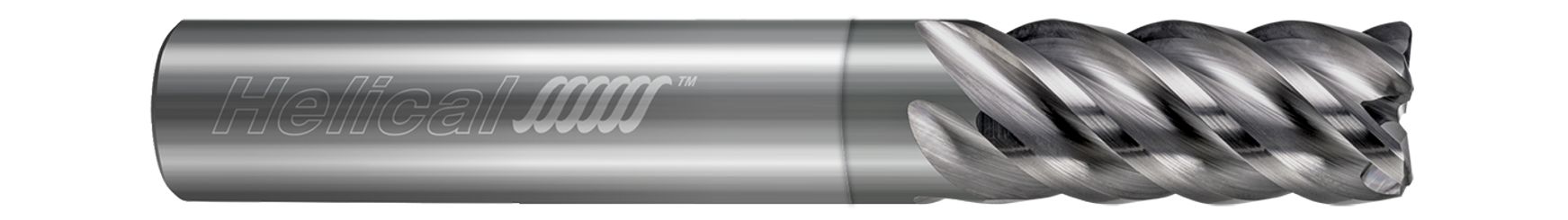

Helical Solutions 84139 | HVAL-040-50250-R.030 1/4" Diameter x 1/4" Shank x 1" LOC x 3" OAL x 0.0300" Radius 5 Flute Uncoated Solid Carbide Corner Radius End Mill

Helical Solutions 84139 | HVAL-040-50250-R.030 1/4" Diameter x 1/4" Shank x 1" LOC x 3" OAL x 0.0300" Radius 5 Flute Uncoated Solid Carbide Corner Radius End Mill

SKU: 25187950

$61.70 USD
$61.70 USD $61.70 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 558 Grams

Ver todos los detalles

Helical's fully stocked 5 Flute Corner Radius End Mill with a variable pitch design is specially engineered for optimal performance in High Efficiency Milling (HEM) of aerospace aluminum alloys and other non-ferrous alloys.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of aerospace aluminum alloys with excellent performance in other non-ferrous alloys
  • Excellent tool life and maximum material removal rates proven through extensive testing
  • Engineered with variable pitch for minimized harmonics and reduced tool pressure
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
  • Solid carbide

Product Specifications
Cutter Diameter (Inch) 0.2500" (1/4)
Length of Cut (Inch) 1"
Overall Length (Inch) 3"
Corner Radius (Inch) 0.0300"
No of Flutes 5
Shank Diameter (Inch) 0.2500" (1/4)
Finish/Coating Uncoated
Center Cutting (Yes/No) Yes
