Helical Solutions

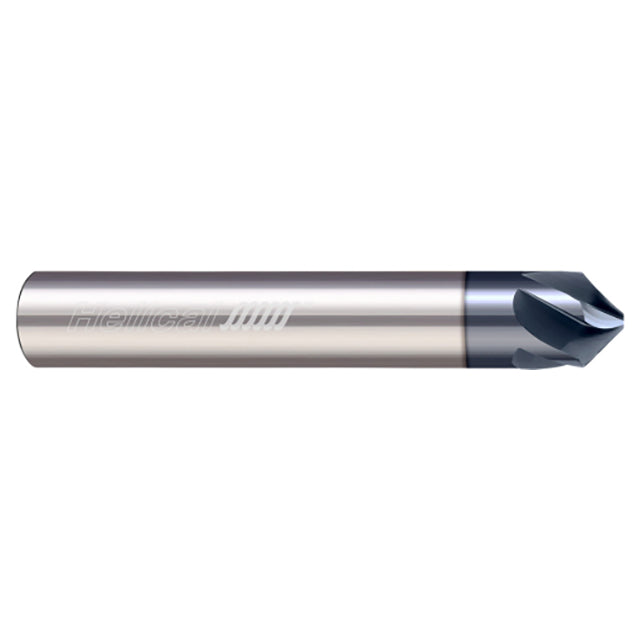

Helical Solutions 82662 | HPCM90-51000 1" Cutter Head Diameter x 1" Shank x 4" OAL x 90 Degree Included Angle 5 Flute Aplus Coated Solid Carbide Chamfer Mill

Helical Solutions 82662 | HPCM90-51000 1" Cutter Head Diameter x 1" Shank x 4" OAL x 90 Degree Included Angle 5 Flute Aplus Coated Solid Carbide Chamfer Mill

SKU: 25146535

Precio habitual $250.50 USD
Precio habitual $250.50 USD Precio de oferta $250.50 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

UPC:

Weight: 612 Grams

11 en existencias

Free Shipping on Orders Over $75

Ver todos los detalles
Product Specifications
Tool Description HPCM90-51000
MIll Diameter (Inch) 1"
MIll Diameter (Decimal Inch) 1.0000"
Number of Flutes 5
Length of Cut (Decimal Inch) 0.4400"
Material Solid Carbide
Overall Length (Inch) 4"
Overall Length (Decimal Inch) 4.0000"
Shank Diameter (Inch) 1"
Shank Diameter (Decimal Inch) 1.0000"
Finish/Coating Aplus
Included Angle 90 Degree
Center Cutting (Yes/No) No
Tip (Decimal Inch) 0.1200"
LOC Multiple 0.4x
Shank Length (Inch) 3.5600"
Shank Length (Decimal Inch) 3.5600"
Chip Breaker (Yes/No) No
Weldon Flat (Yes/No) No
Metric (Yes/No) No
Coolant Through (Yes/No) No
